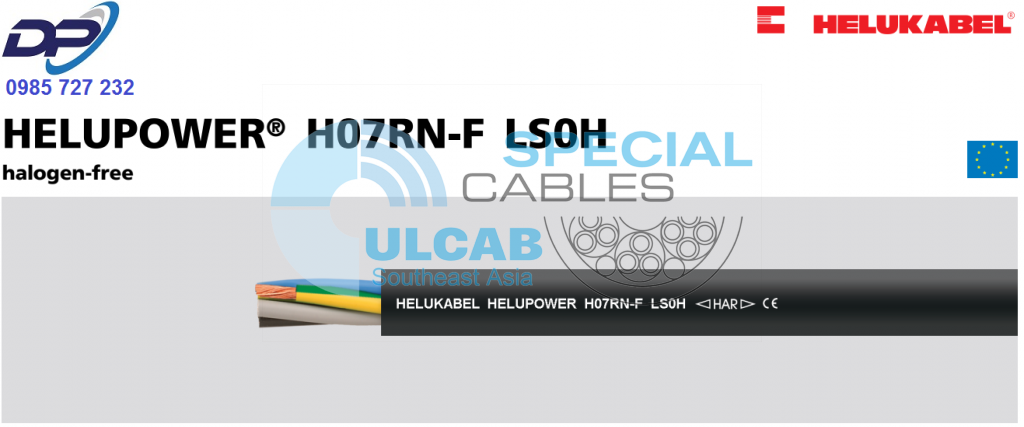

HELUPOWER®  H07RN-F  LS0H

halogen-free

Logo Image

Technical data

  • Rubber sheathed cable to
    DIN VDE 0285-525-2-21 /
    DIN EN 50525-2-21
  • Temperature range
    flexing -40°C  up to  +90°C
    fixed installation -50°C  up to  +90°C
  • Permissible conductor operating
    temperature
      +90°C
  • Permissible short circuit temperature
    +250°C
  • Nominal voltage
    U0/U 450/750 V
  • Max. permissible operating voltage
    – 3-Phase and single phase
    operation  476/825 V
    – DC operation  619/1238 V
  • Test voltage
    core/core  2500 V
  • Minimum bending radius
    flexing 6x outer Ø
    fixed installation 4x outer Ø

Cable structure

  • Bare copper conductor, fine wire
    acc. to DIN VDE 0295 cl.5 /
    IEC 60228 cl.5
  • Core insulation: special rubber
  • Core identification acc. to DIN VDE 0293-308
    1 core: black
    ≤ 5 cores: coloured
    ≥ 6 cores: black with continuous white numbering
  • ≥ 3 cores: incl. GN-YE conductor
    G = with GN-YE conductor, in the outer layer
    x = no GN-YE conductor
  • Cores stranded in layers with
    optimal lay length
  • Outer sheath: special rubber
  • Sheath colour: black

Properties

  • resistant to
    UV-radiation, weather,
    fats, lubricating oil
  • Torsion-resistant in wind turbines
    Torsion angle +/- 150°/m
    Speed 1 U/Minute
    Temperature range
    -40°C to +90°C  2000 cycles
    +5°C to +90°C  5000 cycles

Tests

  • Flame retardant acc. to
    DIN VDE 0482-332-1-2 /
    DIN EN 60332-1-2 / IEC 60332-1-2
  • Halogen-free acc. to
    DIN VDE 0482-754-1 /
    DIN EN 60754-1 / IEC 60754-1
  • Corrosiveness of combustion gases
    acc. to DIN VDE 0482-754-2 /
    DIN EN 60754-2 / IEC 60754-2
  • Smoke density acc. to
    DIN VDE 0482-1034-1+2 /
    DIN EN 61034-1+2 / IEC 61034-1+2
  • Oil resistant acc. to
    DIN VDE 0473-811-404/DIN EN 60811-404
  • Ozone resistant to DIN EN 60811-403

Note

  • AWG sizes are approximate equivalent
    values. The actual cross section is in mm².

Application

Halogen-free rubber tube cables are suited for medium mechanical stress in dry, damp and wet areas as well as outdoors. Can only be used in stagnant water (also in salt water) up to a water depth of 100 m (AD8) and at a water temperature of min. +5°C. Laying in tubes or similar closed systems the use of the cable is approved up to 1000 V ac-voltage or up to 750 V direct voltage against earth.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

Part no. No.cores x
cross-sec.
mm²
Outer Ø

min. – max.

app. mm

Cop.
weight

kg / km

Weight

app. kg / km

AWG-No.
30737 1 x 1,5 5,7 – 7,1 14,4 51,0 16
30738 1 x 2,5 6,3 – 7,9 24,0 67,0 14
30739 1 x 4 7,2 – 9,0 38,0 92,0 12
30740 1 x 6 7,9 – 9,8 58,0 121,0 10
30741 1 x 10 9,5 – 11,9 96,0 186,0 8
30742 1 x 16 10,8 – 13,4 154,0 256,0 6
30743 1 x 25 12,7 – 15,8 240,0 368,0 4
30744 1 x 35 14,3 – 17,9 336,0 485,0 2
30745 1 x 50 16,5 – 20,6 480,0 668,0 1
30746 1 x 70 18,6 – 23,3 672,0 905,0 2/0
30747 1 x 95 20,8 – 26,0 912,0 1180,0 3/0
30748 1 x 120 22,8 – 28,6 1152,0 1460,0 4/0
30749 1 x 150 25,2 – 31,4 1440,0 1810,0 300 kcmil
30750 1 x 185 27,6 – 34,4 1776,0 2165,0 350 kcmil
30751 1 x 240 30,6 – 38,3 2304,0 2750,0 500 kcmil
30752 1 x 300 33,5 – 41,9 2880,0 3271,0 600 kcmil
30753 1 x 400 37,4 – 46,8 3840,0 4286,0 750 kcmil
30754 1 x 500 41,3 – 52,0 4800,0 5301,0 1000 kcmil
30755 1 x 630 45,5 – 57,0 6048,0 6959,0 1250 kcmil
30756 2 x 1 7,7 – 10,0 19,0 93,0 18
30757 2 x 1,5 8,5 – 11,0 29,0 115,0 16
30758 2 x 2,5 10,2 – 13,1 48,0 165,0 14
30759 2 x 4 11,8 – 15,1 77,0 225,0 12
30760 2 x 6 13,1 – 16,8 115,0 300,0 10
30761 2 x 10 17,7 – 22,6 192,0 550,0 8
30762 2 x 16 20,2 – 25,7 307,0 745,0 6
30763 2 x 25 24,3 – 30,7 480,0 1060,0 4
30764 3 G 1 8,3 – 10,7 29,0 120,0 18
30765 3 G 1,5 9,2 – 11,9 43,0 150,0 16
30766 3 G 2,5 10,9 – 14,0 72,0 200,0 14
30767 3 G 4 12,7 – 16,2 115,0 295,0 12
30768 3 G 6 14,1 – 18,0 173,0 380,0 10
30769 3 G 10 19,1 – 24,2 288,0 675,0 8
30770 3 G 16 21,8 – 27,6 461,0 950,0 6
30771 3 G 25 26,1 – 33,0 720,0 1355,0 4
30772 3 G 35 29,3 – 37,1 1008,0 1765,0 2
30773 3 G 50 34,1 – 42,9 1440,0 2415,0 1
30774 3 G 70 38,4 – 48,3 2016,0 3230,0 2/0
30775 3 G 95 43,3 – 54,0 2736,0 4225,0 3/0
30776 3 G 120 47,4 – 60,0 3456,0 5190,0 4/0
30777 3 G 150 52,0 – 66,0 4320,0 6415,0 300 kcmil
30778 3 G 185 57,0 – 72,0 5328,0 7700,0 350 kcmil
30779 3 G 240 65,0 – 82,0 6912,0 9458,0 500 kcmil
30780 3 G 300 72,0 – 90,0 8640,0 11635,0 600 kcmil
30781 4 G 1 9,2 – 11,9 38,0 145,0 18
30782 4 G 1,5 10,2 – 13,1 58,0 175,0 16
30783 4 G 2,5 12,1 – 15,5 96,0 255,0 14
30784 4 G 4 14,0 – 17,9 154,0 355,0 12
30785 4 G 6 15,7 – 20,0 230,0 485,0 10
30786 4 G 10 20,9 – 26,5 384,0 845,0 8
30787 4 G 16 23,8 – 30,1 614,0 1185,0 6
30788 4 G 25 28,9 – 36,6 960,0 1730,0 4
30789 4 G 35 32,5 – 41,1 1344,0 2250,0 2
30790 4 G 50 37,7 – 47,5 1920,0 3085,0 1
30791 4 G 70 42,7 – 54,0 2688,0 4145,0 2/0
30792 4 G 95 48,4 – 61,0 3648,0 5465,0 3/0
30793 4 G 120 53,0 – 66,0 4608,0 6670,0 4/0
30794 4 G 150 58,0 – 73,0 5760,0 8290,0 300 kcmil
30795 4 G 185 64,0 – 80,0 7104,0 9385,0 350 kcmil
30796 5 G 1 10,2 – 13,1 48,0 180,0 18
30797 5 G 1,5 11,2 – 14,4 72,0 220,0 16
30798 5 G 2,5 13,3 – 17,0 120,0 310,0 14
30799 5 G 4 15,6 – 19,9 192,0 445,0 12
30800 5 G 6 17,5 – 22,2 288,0 605,0 10
30801 5 G 10 22,9 – 29,1 480,0 1035,0 8
30802 5 G 16 26,4 – 33,3 768,0 1465,0 6
30803 5 G 25 32,0 – 40,4 1200,0 2145,0 4
30804 5 G 35 35,7 – 45,1 1680,0 2579,0 2
30805 5 G 50 41,8 – 53,0 2400,0 3594,0 1
30806 5 G 70 47,5 – 60,0 3360,0 4837,0 2/0
30807 5 G 95 54,0 – 67,0 4560,0 6269,0 3/0
30808 7 G 1,5 14,7 – 18,7 101,0 355,0 16
30809 7 G 2,5 17,1 – 21,8 168,0 498,0 14
30810 12 G 1,5 17,6 – 22,4 173,0 505,0 16
30811 12 G 2,5 20,6 – 26,2 288,0 710,0 14
