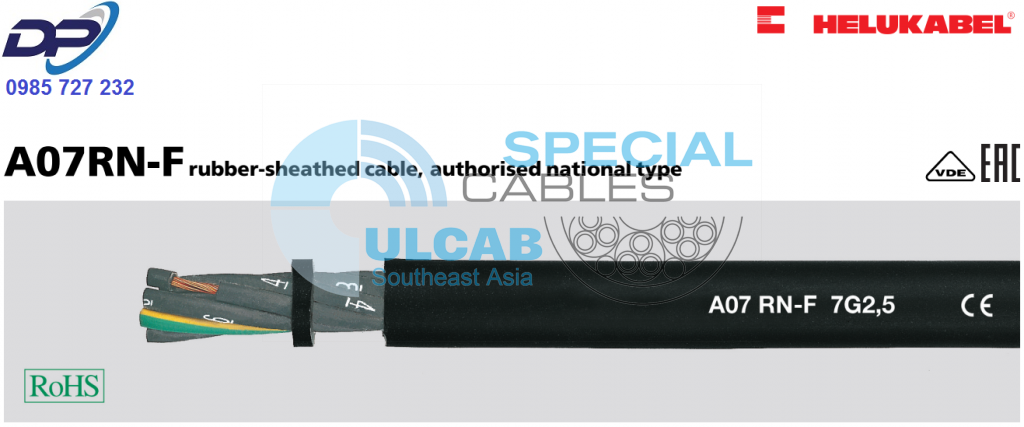

A07RN-F

rubber-sheathed cable, authorised national type

Technical data

• Rubber sheathed cable A07RN-F to
  DIN VDE 0285-525-2-21 /
  DIN EN 50525-2-21
• Temperature range
  -30°C to +60°C
• Permissible operating temperature
  at conductor +60°C
• Nominal voltage U₀/U 450/750 V
  in case of protected and fixed installation
  U₀/U 600/1000 V
• Max. permissible operating voltage
  – 3-Phase and single phase
  operation  476/825 V
  – DC operation  619/1238 V
• Test voltage 2500 V
• Permanent tensile load
  max. 15 N/mm²
  under consideration of
  total copper cross-sections
• Minimum bending radius
  for fixed installation 4x cable Ø
  for guiding over roller 7,5x cable Ø
  during winding on drums 5x cable Ø

Cable structure

• Bare copper conductor, to
  DIN VDE 0295 cl.5, fine wire,
  BS 6360 cl.5, IEC 60228 cl.5
• Core insualtion of rubber EI4 to
  DIN VDE 0207-363-1 / DIN EN 50363-1
• Core identification to DIN VDE 0293-308
  – up to 5 cores coloured
  – from 6 cores, black with continuous
  white numbering
• Cores stranded in layers in
  optimal lay length
• Outer sheath of rubber EM2 to
  DIN VDE 0207-363-2-1/DIN EN 50363-2-1
• Sheath colour: black

Properties

Resistant to

• Weather

Test

• Behaviour in fire
  acc. to DIN VDE 0482-332-1-2 /
  DIN EN 60332-2-1 / IEC 60332-1-2
• Ozone resistant of the insulation acc. to
  DIN VDE 0472-805, test method A or
  DIN VDE 0472-805 A1, test method C

Note

• G = with GN-YE conductor
  x = without GN-YE conductor
• A07RN-F = Authorized national
• rubber-sheathed cable
• Valid for design with central core + 7 cores.
• The core identification of a single core
  sheathed, of an insulated wire is black.
• AWG sizes are approximate equivalent
  values. The actual cross section is in mm².

Application

Heavy duty rubber-sheathed flexible cables are suited for use for medium mechanical stress in dry, damp and wet areas as well as in open air and in agriculture plants. They are used for equipment in industry works such as boilers, heating plates, hand lamps, electric tools such as drills, circular saws and homework tools as well as for transportable motors or machines at site. These cables are also suitable for fixed installation on plaster, in temporary buildings and residential barracks. They are suitable for direct laying on components and mechanical parts of machines, for example lifts and cranes. They can be used in case of protected and fixed installation in tubes or in equipment as well as rotor connecting cable of motors with a working voltage up to 1000 V alternating voltage or a direct voltage up to 750 V against ground. The operating direct voltage is permitted up to 900 V against ground when they are used in rail-coaches. Installation in hazardous areas according to DIN VDE 0165 is allowed.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

A07RN-F (with green-yellow protective conductor)

A07RN-F (without green-yellow protective conductor)
