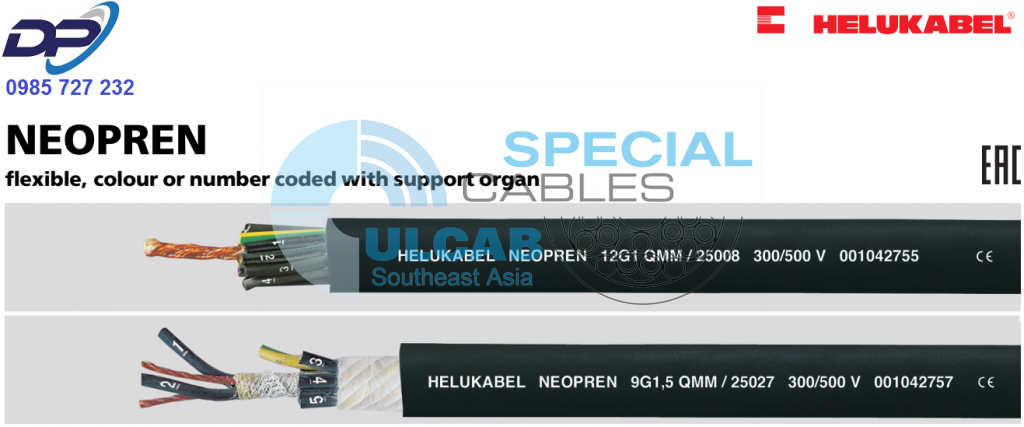

NEOPREN

flexible, colour or number coded with support organ

Logo Image

Technical data

  • Special rubber cable
    adapted to DIN VDE 0250
  • Temperature range
    flexing -25°C to +60°C
    fixed installation -40°C to +80°C
  • Nominal voltage
    U0/U 300/500 V
  • Test voltage
    3000 V
  • Minimum bending radius
    for continuous bending without
    forced guiding operation 12,5x cable Ø
    for flexing with
    forced guiding operation 20x cable Ø

Cable structure

  • Bare copper conductor, to
    DIN VDE 0295 cl.6 col.4, extra fine wire,
    BS 6360 cl.6, IEC 60228 cl.6
  • Core insulation of rubber
  • Core identification to DIN VDE 0293-308
    – up to 5 cores coloured
    – from 6 cores, black with continuous
    white numbering
  • GN-YE conductor, 3 cores and above
  • Cores stranded in layers with
    optimal lay length
  • Support organ (hemp or sisal-string etc.)
    and/or taping with load carrying thread as
    construction permits
  • Outer sheath of special rubber
  • Sheath colour: black

Properties

  • Extensively oil, flat and alkali resistant
  • Flame retardant

Note

  • G = with GN-YE conductor
    x = without GN-YE conductor
  • AWG sizes are approximate equivalent
    values. The actual cross section is in mm².
  • Not suitable for a winding up and an
    unwinding on spring or motor cable reels.
  • Break resistance must be taken into
    consideration.
  • By the assembly the cables must be
    installed without torsion.
  • The mobility of the stranded core is
    not be affected by using of clamps.
  • The occuring pulling forces are to be
    carried by the support organ.

Application

As robust and weather resistant cable for machines, equipment and appliances, which are constantly exposed to the outdoor weather conditions (e. g. building machinery, conveyor and hoist systems, dry docks etc.). They are ideal for use as control cable in trailing cables. They are also suitable in dry, damp and wet rooms and in open air for wall- and push-button panels and as power cable.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

Part no. No.cores x
cross-sec.
mm²
Outer Ø

approx. mm

Tensile
strength
of susp.
strand in N
Cop.
weight

kg / km

Weight

approx. kg / km

AWG-No.
25001 2 x 1 7,5 300 19,0 90,0 18
25002 3 G 1 8,5 150 29,0 111,0 18
25003 4 G 1 9,7 300 38,0 141,0 18
25004 5 G 1 11,5 300 48,0 170,0 18
25005 6 G 1 13,4 58,0 187,0 18
25006 7 G 1 13,8 2290 67,0 204,0 18
25007 9 G 1 15,8 2890 86,0 274,0 18
25008 12 G 1 17,5 6740 115,0 389,0 18
25009 16 G 1 19,2 570 154,0 432,0 18
25010 18 G 1 21,5 960 173,0 471,0 18
25011 19 G 1 22,0 182,0 565,0 18
25012 20 G 1 22,4 600 192,0 590,0 18
25013 24 G 1 23,6 2890 230,0 650,0 18
25074 30 G 1 24,6 290,0 785,0 18
25014 36 G 1 29,0 960 346,0 910,0 18
25015 37 G 1 30,5 355,0 936,0 18
25016 48 G 1 31,4 1440 461,0 1244,0 18
25017 50 G 1 32,6 480,0 1296,0 18
25018 54 G 1 32,9 2500 518,0 1399,0 18
25019 61 G 1 37,2 2290 586,0 1495,0 18
25020 2 x 1,5 8,5 300 29,0 95,0 16
25021 3 G 1,5 9,3 150 43,0 113,0 16
25022 4 G 1,5 10,5 570 58,0 150,0 16
25023 5 G 1,5 12,5 870 72,0 180,0 16
25024 6 G 1,5 14,3 86,0 245,0 16
25025 7 G 1,5 14,8 2600 101,0 309,0 16
25026 8 G 1,5 15,8 3460 115,0 333,0 16
25027 9 G 1,5 17,7 3850 130,0 360,0 16
25028 10 G 1,5 18,5 450 144,0 405,0 16
25029 11 G 1,5 20,1 158,0 458,0 16
25030 12 G 1,5 21,6 7710 173,0 516,0 16
25031 13 G 1,5 22,1 187,0 571,0 16
25032 15 G 1,5 22,8 680 216,0 590,0 16
25033 18 G 1,5 23,6 960 259,0 620,0 16
25034 19 G 1,5 24,1 860 274,0 670,0 16
25035 24 G 1,5 27,0 3850 346,0 817,0 16
25036 37 G 1,5 31,0 533,0 1220,0 16
25037 42 G 1,5 33,0 3460 605,0 1380,0 16
25038 48 G 1,5 34,9 691,0 1510,0 16
25039 50 G 1,5 36,7 720,0 1642,0 16
25040 61 G 1,5 41,8 878,0 1950,0 16
25041 2 x 2,5 10,0 300 48,0 142,0 14
25042 3 G 2,5 10,5 300 72,0 172,0 14
25043 4 G 2,5 11,6 570 96,0 210,0 14
25044 5 G 2,5 12,9 380 120,0 255,0 14
25045 6 G 2,5 14,5 144,0 318,0 14
25046 7 G 2,5 16,2 3460 168,0 383,0 14
25075 8 G 2,5 16,8 3850 192,0 450,0 14
25047 9 G 2,5 21,5 680 216,0 541,0 14
25048 11 G 2,5 23,3 264,0 638,0 14
25049 12 G 2,5 25,4 6060 288,0 690,0 14
25050 16 G 2,5 24,4 383,0 813,0 14
25051 18 G 2,5 26,3 2290 432,0 891,0 14
25052 19 G 2,5 27,5 456,0 946,0 14
25053 24 G 2,5 30,5 6060 576,0 1221,0 14
25054 36 G 2,5 33,3 864,0 1737,0 14
25055 37 G 2,5 40,8 2500 888,0 1784,0 14
25056 48 G 2,5 41,9 1152,0 2500,0 14
25057 50 G 2,5 43,3 1200,0 2630,0 14
25058 61 G 2,5 49,3 1464,0 8100,0 14
25059 3 G 4 13,6 115,0 372,0 12
25060 4 G 4 15,0 1000 154,0 407,0 12
25061 5 G 4 17,1 600 192,0 432,0 12
25062 7 G 4 21,5 269,0 495,0 12
25063 3 G 6 13,9 173,0 380,0 10
25064 4 G 6 15,2 1000 230,0 445,0 10
25065 5 G 6 19,2 900 288,0 569,0 10
25066 7 G 6 21,1 403,0 702,0 10
25067 3 G 10 18,1 288,0 530,0 8
25068 4 G 10 20,6 1200 384,0 724,0 8
25069 5 G 10 22,6 1500 480,0 923,0 8
25070 7 G 10 27,4 672,0 1288,0 8
25071 3 G 16 21,3 461,0 865,0 6
25072 4 G 16 25,2 1920 614,0 1028,0 6
25073 5 G 16 26,5 2400 768,0 1260,0 6
