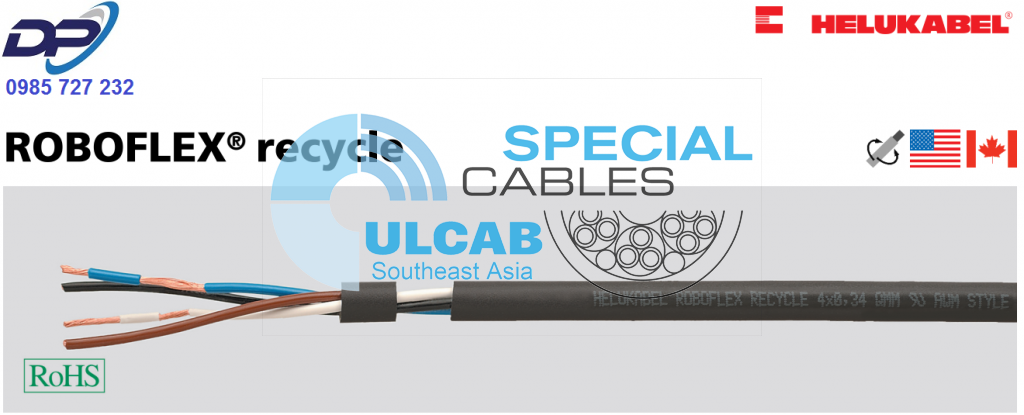

ROBOFLEX®-recycle
Logo Image Logo Image Logo Image

Technical data

  • Approval:
    UL/cUL approved, UL Style 20233
  • Production
    in accordance with VDE standards
  • Temperature range:
    fixed installation -40°C to +105°C
    flexibel -30°C to +105°C
  • Nominal voltage:
    300 V
  • Test voltage:
    2000 V
  • Minimum bending radius:
    7,5x cable Ø (for flexible installation)
  • Traversing speed:
    max. 3.3 m/s for 5 m of horizontal traverse
    path length
  • Acceleration:
    max. 5 m/s²
  • Flexing and torsion cycles:
    min. 10 million.
  • Torsional stress:
    +/- 360°/m

Cable structure

Assembly (3-pin)

  • Bare copper litz wire
  • Core insulation TPE
  • Cores stranded in layers
  • -D-screen: screened version for robot
    application
  • -C-screen: in drag chain systems
  • Sheath, special mix
  • weld splatter resistant, dull, low adhesion
  • Sheath colour: see below

Properties

  • very good resistance to oil as per
    DIN VDE 0473-811-404/DIN EN 60811-404
  • good resistance to acids, alkalis and solvents
  • not cross-linked
  • weld splatter resistant
  • recyclable
  • halogen-free
  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers
  • Free of substances harmful to paint adhesion
    substances
  • very high mechanical load capacity
  • abrasion resistant
  • wear-resistant
  • Highly flexible
  • UV-resistant

Application

The cables with this new sheath material cover all requirements for very large mechanical stresses for abrasion, tear resistance, torsion, flexing, flexibility and oil resistance. Using for automation technology, plant and machine construction, fixture construction for handling devices, welding devices and welding tongs, assembly and handling devices, machining production, welding robots and tool machines, blast furnaces and rolling mills. The completely new feature of this cable is the weld splatter resistance without the otherwise usual and required cross-linking process. Our newly developed non-cross-linked thermoplastic elastomer is fully recyclable. In contrast to this, the usual, cross-linked, thermoplastic elastomers cannot be recycled and put a not insignificant stress on our environment. This must be particularly interesting for customers who have an environment management system according to DIN EN ISO 14001 and thus place a great deal of importance on the use of recyclable materials. A significantly longer service life than that of existing cables on the market, because it can be used in highly flexible applications, for example on robots (torsion) and in drag chains (dynamic load).
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

ROBOFLEX® recycle

Part no. Cable structure AWG-No.
Sheath colour No.cores x
cross-sec.
mm²		 Core colours High
flex **		 Outer Ø

approx. mm

 Cop.
weight

kg / km

 Weight

approx. kg / km
701889 BK RAL 9005 3 x 0,25 BN, BU, BK X 4,4 7,2 22,0 –
701891 YE RAL 1021 3 x 0,25 BN, BU, BK X 4,4 7,2 22,0 –
701890 GY RAL 7001 3 x 0,25 BN, BU, BK X 4,4 7,2 22,0 –
701894 YE RAL 1021 4 x 0,25 BN, BU, BK, WH X 4,7 9,6 26,0 –
701892 BK RAL 9005 4 x 0,25 BN, BU, BK, WH X 4,7 9,6 26,0 –
701893 GY RAL 7001 4 x 0,25 BN, BU, BK, WH X 4,7 9,6 26,0 –
701897 YE RAL 1021 5 x 0,25 BN, BU, BK, WH, GY X 4,8 12,0 30,0 –
701895 BK RAL 9005 5 x 0,25 BN, BU, BK, WH, GY X 4,8 12,0 30,0 –
701896 GY RAL 7001 5 x 0,25 BN, BU, BK, WH, GY X 4,8 12,0 30,0 –
702805 YE RAL 1021 8 x 0,25 DIN 47100 X 6,0 19,2 55,0 –
702803 BK RAL 9005 8 x 0,25 DIN 47100 X 6,0 19,2 55,0 –
702804 GY RAL 7001 8 x 0,25 DIN 47100 X 6,0 19,2 55,0 –
701900 YE RAL 1021 3 x 0,34 BN, BU, BK X 4,9 9,8 30,0 –
701898 BK RAL 9005 3 x 0,34 BN, BU, BK X 4,9 9,8 30,0 –
701899 GY RAL 7001 3 x 0,34 BN, BU, BK X 4,9 9,8 30,0 –
701903 YE RAL 1021 4 x 0,34 BN, BU, BK, WH X 5,2 13,1 43,0 –
701901 BK RAL 9005 4 x 0,34 BN, BU, BK, WH X 5,2 13,1 43,0 –
701902 GY RAL 7001 4 x 0,34 BN, BU, BK, WH X 5,2 13,1 43,0 –
701906 YE RAL 1021 5 x 0,34 BN, BU, BK, WH, GY X 5,9 16,4 54,0 –
701904 BK RAL 9005 5 x 0,34 BN, BU, BK, WH, GY X 5,9 16,4 54,0 –
701905 GY RAL 7001 5 x 0,34 BN, BU, BK, WH, GY X 5,9 16,4 54,0 –
702808 YE RAL 1021 8 x 0,34 DIN 47100 X 6,8 26,1 78,0 –
702806 BK RAL 9005 8 x 0,34 DIN 47100 X 6,8 26,1 78,0 –
702807 GY RAL 7001 8 x 0,34 DIN 47100 X 6,8 26,1 78,0 –
701910 YE RAL 1021 5 G 0,5 BK with number, GN-YE X 6,0 24,0 65,0 –
701908 BK RAL 9005 5 G 0,5 BK with number, GN-YE X 6,0 24,0 65,0 –
701909 GY RAL 7001 5 G 0,5 BK with number, GN-YE X 6,0 24,0 65,0 –
701913 YE RAL 1021 5 G 0,75 BK with number, GN-YE X 7,0 36,0 80,0 –
701911 BK RAL 9005 5 G 0,75 BK with number, GN-YE X 7,0 36,0 80,0 –
701912 GY RAL 7001 5 G 0,75 BK with number, GN-YE X 7,0 36,0 80,0 –

ROBOFLEX® recycle screened, C-screen

Part no. Cable structure AWG-No.
Sheath colour No.cores x
cross-sec.
mm²		 Core colours High
flex **		 Outer Ø

approx. mm

 Cop.
weight

kg / km

 Weight

approx. kg / km
703873 BK RAL 9005 3 x 0,25 BN, BU, BK X 5,0 17,0 44,6 –
703875 YE RAL 1021 3 x 0,25 BN, BU, BK X 5,0 17,0 44,6 –
703874 GY RAL 7001 3 x 0,25 BN, BU, BK X 5,0 17,0 44,6 –
703878 YE RAL 1021 4 x 0,25 BN, BU, BK, WH X 5,2 19,4 46,3 –
703876 BK RAL 9005 4 x 0,25 BN, BU, BK, WH X 5,2 19,4 46,3 –
703877 GY RAL 7001 4 x 0,25 BN, BU, BK, WH X 5,2 19,4 46,3 –
703881 YE RAL 1021 5 x 0,25 BN, BU, BK, WH, GY X 5,3 22,5 50,0 –
703879 BK RAL 9005 5 x 0,25 BN, BU, BK, WH, GY X 5,3 22,5 50,0 –
703880 GY RAL 7001 5 x 0,25 BN, BU, BK, WH, GY X 5,3 22,5 50,0 –
703899 YE RAL 1021 8 x 0,25 DIN 47100 X 6,8 34,1 53,5 –
703897 BK RAL 9005 8 x 0,25 DIN 47100 X 6,8 34,1 53,5 –
703898 GY RAL 7001 8 x 0,25 DIN 47100 X 6,8 34,1 53,5 –
703884 YE RAL 1021 3 x 0,34 BN, BU, BK X 5,2 19,6 48,2 –
703882 BK RAL 9005 3 x 0,34 BN, BU, BK X 5,2 19,6 48,2 –
703883 GY RAL 7001 3 x 0,34 BN, BU, BK X 5,2 19,6 48,2 –
703887 YE RAL 1021 4 x 0,34 BN, BU, BK, WH X 5,4 23,7 53,0 –
703885 BK RAL 9005 4 x 0,34 BN, BU, BK, WH X 5,4 23,7 53,0 –
703886 GY RAL 7001 4 x 0,34 BN, BU, BK, WH X 5,4 23,7 53,0 –
703890 YE RAL 1021 5 x 0,34 BN, BU, BK, WH, GY X 5,8 28,7 61,9 –
703888 BK RAL 9005 5 x 0,34 BN, BU, BK, WH, GY X 5,8 28,7 61,9 –
703889 GY RAL 7001 5 x 0,34 BN, BU, BK, WH, GY X 5,8 28,7 61,9 –
703902 YE RAL 1021 8 x 0,34 DIN 47100 X 7,3 58,0 85,0 –
703900 BK RAL 9005 8 x 0,34 DIN 47100 X 7,3 58,0 85,0 –
703901 GY RAL 7001 8 x 0,34 DIN 47100 X 7,3 58,0 85,0 –
703893 YE RAL 1021 5 G 0,5 BK with number, GN-YE X 7,0 52,0 76,0 –
703891 BK RAL 9005 5 G 0,5 BK with number, GN-YE X 7,0 52,0 76,0 –
703892 GY RAL 7001 5 G 0,5 BK with number, GN-YE X 7,0 52,0 76,0 –
703896 YE RAL 1021 5 G 0,75 BK with number, GN-YE X 7,6 70,0 93,0 –
703894 BK RAL 9005 5 G 0,75 BK with number, GN-YE X 7,6 70,0 93,0 –
703895 GY RAL 7001 5 G 0,75 BK with number, GN-YE X 7,6 70,0 93,0 –

ROBOFLEX® recycle screened, D-screen

Part no. Cable structure AWG-No.
Sheath colour No.cores x
cross-sec.
mm²		 Core colours High
flex **		 Outer Ø

approx. mm

 Cop.
weight

kg / km

 Weight

approx. kg / km
703843 BK RAL 9005 3 x 0,25 BN, BU, BK X 5,0 17,0 44,6 –
703845 YE RAL 1021 3 x 0,25 BN, BU, BK X 5,0 17,0 44,6 –
703844 GY RAL 7001 3 x 0,25 BN, BU, BK X 5,0 17,0 44,6 –
703848 YE RAL 1021 4 x 0,25 BN, BU, BK, WH X 5,2 19,4 46,3 –
703846 BK RAL 9005 4 x 0,25 BN, BU, BK, WH X 5,2 19,4 46,3 –
703847 GY RAL 7001 4 x 0,25 BN, BU, BK, WH X 5,2 19,4 46,3 –
703851 YE RAL 1021 5 x 0,25 BN, BU, BK, WH, GY X 5,3 22,5 50,0 –
703849 BK RAL 9005 5 x 0,25 BN, BU, BK, WH, GY X 5,3 22,5 50,0 –
703850 GY RAL 7001 5 x 0,25 BN, BU, BK, WH, GY X 5,3 22,5 50,0 –
703869 YE RAL 1021 8 x 0,25 DIN 47100 X 6,8 34,1 53,5 –
703867 BK RAL 9005 8 x 0,25 DIN 47100 X 6,8 34,1 53,5 –
703868 GY RAL 7001 8 x 0,25 DIN 47100 X 6,8 34,1 53,5 –
703854 YE RAL 1021 3 x 0,34 BN, BU, BK X 5,2 19,6 48,2 –
703852 BK RAL 9005 3 x 0,34 BN, BU, BK X 5,2 19,6 48,2 –
703853 GY RAL 7001 3 x 0,34 BN, BU, BK X 5,2 19,6 48,2 –
703857 YE RAL 1021 4 x 0,34 BN, BU, BK, WH X 5,4 23,7 53,0 –
703855 BK RAL 9005 4 x 0,34 BN, BU, BK, WH X 5,4 23,7 53,0 –
703856 GY RAL 7001 4 x 0,34 BN, BU, BK, WH X 5,4 23,7 53,0 –
703860 YE RAL 1021 5 x 0,34 BN, BU, BK, WH, GY X 5,8 28,7 61,9 –
703858 BK RAL 9005 5 x 0,34 BN, BU, BK, WH, GY X 5,8 28,7 61,9 –
703859 GY RAL 7001 5 x 0,34 BN, BU, BK, WH, GY X 5,8 28,7 61,9 –
703872 YE RAL 1021 8 x 0,34 DIN 47100 X 7,3 58,0 85,0 –
703870 BK RAL 9005 8 x 0,34 DIN 47100 X 7,3 58,0 85,0 –
703871 GY RAL 7001 8 x 0,34 DIN 47100 X 7,3 58,0 85,0 –
703863 YE RAL 1021 5 G 0,5 BK with number, GN-YE X 7,0 52,0 76,0 –
703861 BK RAL 9005 5 G 0,5 BK with number, GN-YE X 7,0 52,0 76,0 –
703866 YE RAL 1021 5 G 0,75 BK with number, GN-YE X 7,6 70,0 93,0 –
703864 BK RAL 9005 5 G 0,75 BK with number, GN-YE X 7,6 70,0 93,0 –
703865 GY RAL 7001 5 G 0,75 BK with number, GN-YE X 7,6 70,0 93,0 –
