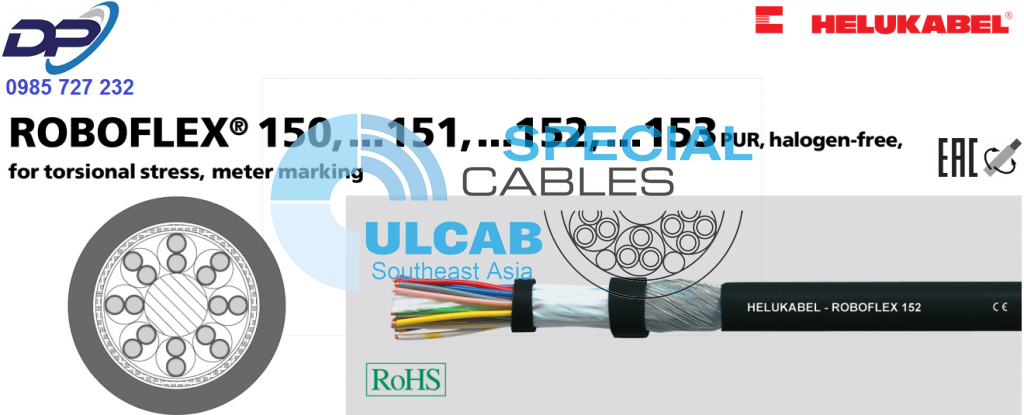

ROBOFLEX^® 152 (screened, Sheath colour black)

PUR, flame retardant, halogen-free, for torsional stress, meter marking

Technical data

Special TPE-E/PUR robot cable
based on DIN VDE 0250 /
DIN VDE 0285-525-1 / DIN EN 50525-1
Temperature range
flexing -40°C to +80°C
Nominal voltage
up to 0,34 mm² 350 V
from 0,5 mm² U₀/U 300/500 V
Test voltage
up to 0,34 mm² 1500 V
from 0,5 mm² 3000 V
Insulation resistance
min. 20 MOhm x km
Max. torsion angle
±360°/metre
Mutual capacitance
core/core approx. 100 pF/m
core/screen approx. 120 pF/m
Minimum bending radius
15x cable Ø

Cable structure

Bare copper, stranded to DIN VDE 0295 and
IEC 60228, fine or extra fine wires,
cl.5 or cl.6, BS 6360 cl.5 or 6,
up to 0,34 mm² cl.5, above 0,5 mm² cl.6
TPE-E core insulation
Black cores continuous white numbering
acc. to DIN VDE 0293 + gnye
Special optimised stranding
High-grade slide wrapping
With meter marking
Tinned copper twist screen
PUR outer sheath
Sheath colour: grey (RAL 7001) or black

Part. nos. 77261-77263, 76158, 70561,
77267, 77268, 76165, 76166, 77424

Core colours DIN 47100

Part no. 71820, 74658, 77264, 75253,
76167

Construction as above, but 0,5 (1,0) mm²
cores screened with aluminium-coated
polyester foil

Part no. 72214

Construction as above, but 0,5 mm² pair
screened with tinned twist screen

Part no. 77265, 77266, 77269, 77270

Construction as above, but 1,0 mm² pair
only, screened with tinned twist screen

Part no. 77469

Construction as above, but
6 cores, 1,5 mm², screened with tinned
twist screen
4 pairs, 0,25 mm², screened with tinned
twist screen
Sheath colour: orange (RAL 2003)
With meter marking

Properties

PUR outer sheath, low adhesion, abrasion
resistant, halogen-free, resistant to UV, oil,
hydrolysis and microbial attack
The smooth, high-grade core insulation,
together with special stranding configuration
and slide wrapping ensure long service life
under combined bending and torsional
stresses

Note

AWG sizes are approximate equivalent
values. The actual cross section is in mm².

Application

These cables are specially designed for combined torsional and bending stresses. They are employed both for power supply and for the transmission of control and monitoring signals. ROBOFLEX^® cables are used in assembly and welding robots, in handling and automation centres, in transport and conveyor equipment, and on turntables and swivel tables. In other words, anywhere where there is no defined cable routing with only alternating bending cycles on a single plane such as in drag chains.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet
