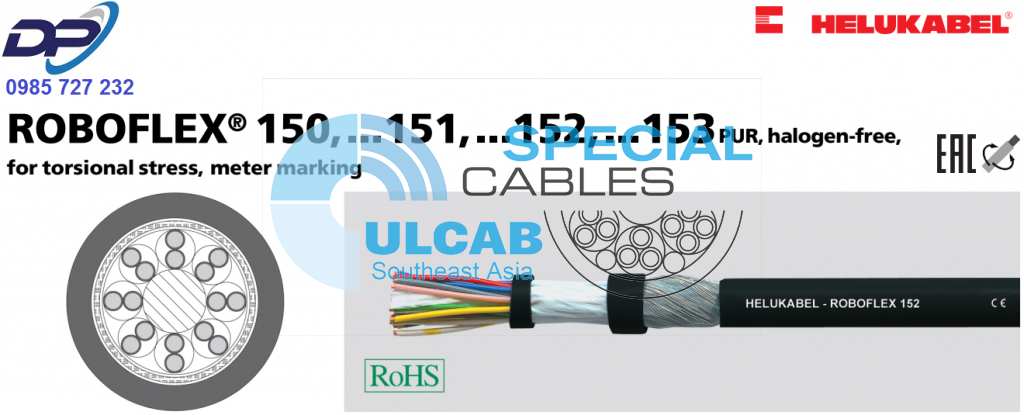

ROBOFLEX® 153 (Sheath colour black)

PUR, flame retardant, halogen-free, for torsional stress, meter marking

Logo Image Logo Image

Technical data

  • Special TPE-E/PUR robot cable
    based on DIN VDE 0250 /
    DIN VDE 0285-525-1 / DIN EN 50525-1
  • Temperature range
    flexing -40°C to +80°C
  • Nominal voltage
    up to 0,34 mm²  350 V
    from 0,5 mm²  U0/U 300/500 V
  • Test voltage
    up to 0,34 mm²  1500 V
    from 0,5 mm²  3000 V
  • Insulation resistance
    min. 20 MOhm x km
  • Max. torsion angle
    ±360°/metre
  • Mutual capacitance
    core/core  approx. 100 pF/m
    core/screen  approx. 120 pF/m
  • Minimum bending radius
    15x cable Ø

Cable structure

  • Bare copper, stranded to DIN VDE 0295 and
    IEC 60228, fine or extra fine wires,
    cl.5 or cl.6, BS 6360 cl.5 or 6,
    up to 0,34 mm² cl.5, above 0,5 mm² cl.6
  • TPE-E core insulation
  • Black cores continuous white numbering
    acc. to DIN VDE 0293 + gnye
  • Special optimised stranding
  • High-grade slide wrapping
  • With meter marking
  • Tinned copper twist screen
  • PUR outer sheath
  • Sheath colour: grey (RAL 7001) or black

Part. nos. 77261-77263, 76158, 70561,
77267, 77268, 76165, 76166, 77424

  • Core colours DIN 47100

Part no. 71820, 74658, 77264, 75253,
76167

  • Construction as above, but 0,5 (1,0) mm²
    cores screened with aluminium-coated
    polyester foil

Part no. 72214

  • Construction as above, but 0,5 mm² pair
    screened with tinned twist screen

Part no. 77265, 77266, 77269, 77270

  • Construction as above, but 1,0 mm² pair
    only, screened with tinned twist screen

Part no. 77469

  • Construction as above, but
  • 6 cores, 1,5 mm², screened with tinned
    twist screen
  • 4 pairs, 0,25 mm², screened with tinned
    twist screen
  • Sheath colour: orange (RAL 2003)
  • With meter marking

Properties

  • PUR outer sheath, low adhesion, abrasion
    resistant, halogen-free, resistant to UV, oil,
    hydrolysis and microbial attack
  • The smooth, high-grade core insulation,
    together with special stranding configuration
    and slide wrapping ensure long service life
    under combined bending and torsional
    stresses

Note

  • AWG sizes are approximate equivalent
    values. The actual cross section is in mm².

Application

These cables are specially designed for combined torsional and bending stresses. They are employed both for power supply and for the transmission of control and monitoring signals. ROBOFLEX® cables are used in assembly and welding robots, in handling and automation centres, in transport and conveyor equipment, and on turntables and swivel tables. In other words, anywhere where there is no defined cable routing with only alternating bending cycles on a single plane such as in drag chains.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

ROBOFLEX® 153, Sheath colour black

Part no. No.cores x
cross-sec.
mm²
Outer Ø

approx. mm

Cop.
weight

kg / km

Weight

approx. kg / km

AWG-No.
76172 4 x 1,5 8,5 57,6 106,0 16
76174 4 x 4 12,7 153,6 283,0 12
76175 4 x 6 15,0 230,4 432,0 10
