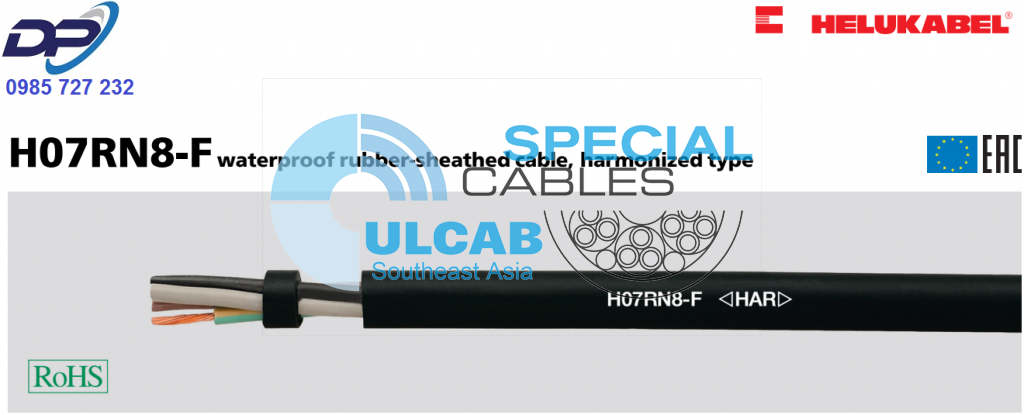

H07RN8-F

waterproof rubber-sheathed cable, harmonized type

Technical data

  • Water resistant heavy hose pipe
    to DIN VDE 0285-525-2-21 /
    DIN EN 50525-2-21
  • Temperature range
    flexing -25°C
    fixed installation -40°C
    in water max. +40°C
  • Permissible operating temperature
    at conductor +60°C
  • Nominal voltage U0/U 450/750 V
    in case of protected and fixed installation
    U0/U 600/1000 V
  • Test voltage 2500 V
  • Permanent tensile load
    max. 15 N/mm²
  • Minimum bending radius
    flexing 6x cable Ø
    fixed installation 4x cable Ø

Cable structure

  • Bare copper conductor, to
    DIN VDE 0295 cl.5, fine wire,
    BS 6360 cl.5, IEC 60228 cl.5
  • Core insulation of rubber
    compound type EI4 to
    DIN VDE 0207-363-1 / DIN EN 50363-1
  • Core identification to DIN VDE 0293-308
    – up to 5 cores coloured
    – from 6 cores, black with continuous
    white numbering
  • GN-YE conductor, 3 cores and above
  • Cores stranded in layers with
    optimal lay length
  • Outer sheath of special polychoroprene
    rubber
  • Outer sheath colour: black

Properties

  • Resistant to
    Ozone
    Weather
  • The core identification of a single core
    sheathed, of an insulated wire is black.

Tests

  • Oil resistant acc. to
    DIN VDE 0473-811-404/DIN EN 60811-404
  • Behaviour in fire acc.to
    DIN VDE 0482-332-1-2 /
    DIN EN 60332-1-2 / IEC 60332-1-2

Note

  • G = with GN-YE conductor
    x = without GN-YE conductor
  • AWG sizes are approximate equivalent
    values. The actual cross section is in mm².

Application

Specifically designed for use in fresh water up to 10 m water depth and a maximum water temperature of 40°C for connection of submersible pumps and similar applications. Not suitable for underwater power transmission systems or in waterways or in areas where mechanical damage is possible which represent a potential danger.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

Part no. No.cores x
cross-sec.
mm²
Outer Ø

min. – max.

mm

Cop.
weight

kg / km

Weight

approx. kg / km

AWG-No.
37287 1 x 1,5 5,7 – 7,1 14,4 58,0 16
37288 1 x 2,5 6,3 – 7,9 24,0 71,0 14
37289 1 x 4 7,2 – 9,0 38,0 100,0 12
37290 1 x 6 7,9 – 9,8 58,0 130,0 10
37291 1 x 10 9,5 – 11,9 96,0 230,0 8
37292 1 x 16 10,8 – 13,4 154,0 290,0 6
37293 1 x 25 12,7 – 15,8 240,0 420,0 4
37294 1 x 35 14,3 – 17,9 336,0 530,0 2
37295 1 x 50 16,5 – 20,6 480,0 750,0 1
37296 1 x 70 18,6 – 23,3 672,0 960,0 2/0
37297 1 x 95 20,8 – 26,0 912,0 1250,0 3/0
37298 1 x 120 22,8 – 28,6 1152,0 1560,0 4/0
37299 1 x 150 25,2 – 31,4 1440,0 1900,0 300 kcmil
37300 1 x 185 27,6 – 34,4 1776,0 2300,0 350 kcmil
37301 1 x 240 30,6 – 38,3 2304,0 2950,0 500 kcmil
37302 1 x 300 33,5 – 41,9 2880,0 3600,0 600 kcmil
37303 1 x 400 37,4 – 46,8 3840,0 4600,0 750 kcmil
37304 1 x 500 41,3 – 52,0 4800,0 6000,0 1000 kcmil
37305 2 x 1 7,7 – 10,0 19,0 98,0 18
37306 2 x 1,5 8,5 – 11,0 29,0 135,0 16
37307 2 x 2,5 10,2 – 13,1 48,0 193,0 14
37308 2 x 4 11,8 – 15,1 77,0 280,0 12
37309 2 x 6 13,1 – 16,8 115,0 330,0 10
37310 2 x 10 17,7 – 22,6 192,0 586,0 8
37311 2 x 16 20,2 – 25,7 307,0 810,0 6
37312 2 x 25 24,3 – 30,7 480,0 1160,0 4
37313 3 G 1 8,3 – 10,7 29,0 130,0 18
37314 3 G 1,5 9,2 – 11,9 43,0 165,0 16
37315 3 G 2,5 10,9 – 14,0 72,0 235,0 14
37316 3 G 4 12,7 – 16,2 115,0 320,0 12
37317 3 G 6 14,1 – 18,0 173,0 420,0 10
37318 3 G 10 19,1 – 24,2 288,0 810,0 8
37319 3 G 16 21,8 – 27,6 461,0 1050,0 6
37320 3 G 25 26,1 – 33,0 720,0 1250,0 4
37321 3 G 35 29,3 – 37,1 1008,0 1900,0 2
37322 3 G 50 34,1 – 42,9 1440,0 2600,0 1
37323 3 G 70 38,4 – 48,3 2016,0 3400,0 2/0
37324 3 G 95 43,3 – 54,0 2736,0 4450,0 3/0
37325 3 G 120 47,4 – 60,0 3456,0 5180,0 4/0
37326 3 G 150 52,0 – 66,0 4320,0 6500,0 300 kcmil
37327 3 G 185 57,0 – 72,0 5328,0 7860,0 350 kcmil
37328 3 G 240 65,0 – 82,0 6192,0 10224,0 500 kcmil
37329 3 G 300 72,0 – 90,0 8640,0 12620,0 600 kcmil
37330 4 G 1 9,2 – 11,9 38,0 150,0 18
37331 4 G 1,5 10,2 – 13,1 58,0 200,0 16
37332 4 G 2,5 12,1 – 15,5 96,0 290,0 14
37333 4 G 4 14,0 – 17,9 154,0 395,0 12
37334 4 G 6 15,7 – 20,0 230,0 540,0 10
37335 4 G 10 20,9 – 26,5 384,0 950,0 8
37336 4 G 16 23,8 – 30,1 614,0 1260,0 6
37337 4 G 25 28,9 – 36,6 960,0 1860,0 4
37338 4 G 35 32,5 – 41,1 1344,0 2380,0 2
37339 4 G 50 37,7 – 47,5 1920,0 3190,0 1
37340 4 G 70 42,7 – 54,0 2688,0 4260,0 2/0
37341 4 G 95 48,4 – 61,0 3648,0 5600,0 3/0
37342 4 G 120 53,0 – 66,0 4608,0 6830,0 4/0
37343 4 G 150 58,0 – 73,0 5760,0 8320,0 300 kcmil
37344 4 G 185 64,0 – 80,0 7104,0 9800,0 350 kcmil
37345 4 G 240 72,0 – 91,0 9216,0 12100,0 500 kcmil
37346 4 G 300 80,0 – 101,0 11520,0 15200,0 600 kcmil
37354 5 G 1 10,2 – 13,1 48,0 175,0 18
37347 5 G 1,5 11,2 – 14,4 72,0 240,0 16
37348 5 G 2,5 13,3 – 17,0 120,0 345,0 14
37349 5 G 4 15,6 – 19,9 192,0 485,0 12
37350 5 G 6 17,5 – 22,2 288,0 650,0 10
37351 5 G 10 22,9 – 29,1 480,0 1200,0 8
37352 5 G 16 26,4 – 33,3 768,0 1550,0 6
37353 5 G 25 32,0 – 40,4 1200,0 2250,0 4
37355 6 G 1,5 13,4 – 17,2 87,0 171,0 16
37356 6 G 2,5 15,7 – 20,0 144,0 279,0 14
37357 12 G 1,5 17,6 – 22,4 173,0 340,0 16
37358 12 G 2,5 20,6 – 26,2 288,0 571,0 14
