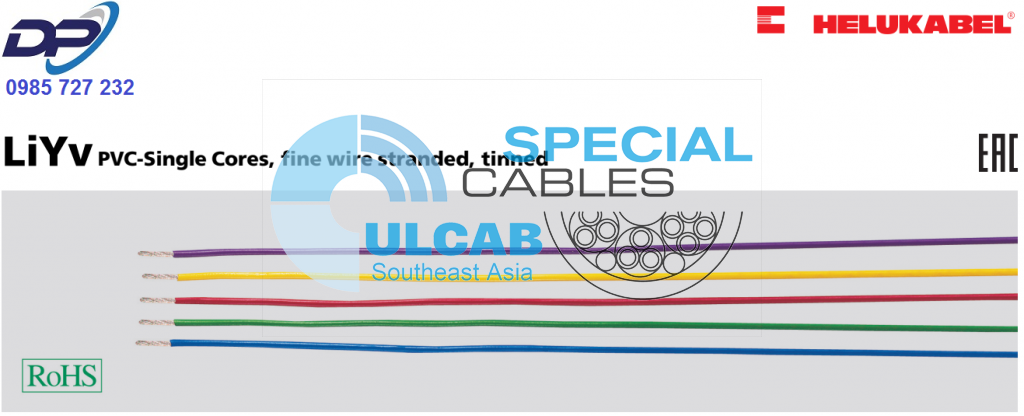

LiYv

PVC-Single Cores, fine wire stranded, tinned

Logo Image

Technical data

  • PVC single cores adapted to
    DIN VDE 0812
  • Temperature range
    flexing -5°C to +70°C
    fixed installation -30°C to +80°C
  • Operating peak voltage
    0,14 mm²  500 V
    0,25-1,5 mm²  900 V
  • Test voltage
    0,14 mm²  1200 V
    0,25-1,5 mm²  2500 V
  • Insulation resistance
    min. 10 MOhm x km
  • Minimum bending radius
    fixed installation 4x core Ø
  • Radiation resistance
    up to 80×106 cJ/kg (up to 80 Mrad)

Cable structure

  • Tinned copper conductor, to
    DIN VDE 0295 cl.5, fine wire,
    BS 6360 cl.5, IEC 60228 cl.5
  • Core insulation of PVC
    compound type YI3 to
    DIN VDE 0812
  • Core identification see table below

Properties

  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers

Tests

  • PVC self-extinguishing and flame retardant
    acc. to DIN VDE 0482-332-1-2 /
    DIN EN 60332-1-2 / IEC 60332-1-2

Note

  • For 2-coloured combinations ring marking.

Application

PVC insulated flexible hook-up wires are used for the connection for low voltage applications, communication apparatus, electronic assemblies and equipment, racks, switchboards etc. correspondingly of VDE 0800-1 for the temperature range up to +70°C. Those stranded hook-up wires are not permitted to install for heavy current application outside of the equipment.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

Crosssec. mm² Outer Ø min.
max. mm
Cop. weight
kg / km
black Green-yellow blue brown red white grey violet yellow Pink green TRANS Dark Blue Orange OTHER COLOURS TWO-COLOUR
app. RAL     9005   5015 8003 3000 9003 7000 4005 1021 3015 6018   5010 2003
LiYv spool
0.14 1,1 1,4 26405 26406 26407 26408 26409 26410 26411 26412 26413 26414 26415 26416 26417 26418 26419 26420
0.25 1,3 2,4 26421 26422 26423 26424 26425 26426 26427 26428 26429 26430 26431 26432 26433 26434 26435 26436
0.5 1,8 4,8 26437 26438 26439 26440 26441 26442 26443 26444 26445 26446 26447 26448 26449 26450 26451 26452
0.75 2,0 7,2 26453 26454 26455 26456 26457 26458 26459 26460 26461 26462 26463 26464 26465 26466 26467 26468
1 2,1 9,6 26469 26470 26471 26472 26473 26474 26475 26476 26477 26478 26479 26480 26481 26482 26483 26484
1.5 2,6 14,4 26485 26486 26487 26488 26489 26490 26491 26492 26493 26494 26495 26496 26497 26498 26499 26500
LiYv barrel
0.25 1,3 2,4 26505 26506 26507 26508 26509 26510 26511 26512 26513 26514 26515 26516 26517 26518 26519 26520
0.5 1,8 4,8 26521 26522 26523 26524 26525 26526 26527 26528 26529 26530 26531 26532 26533 26534 26535 26536
0.75 2,0 7,2 26537 26538 26539 26540 26541 26542 26543 26544 26545 26546 26547 26548 26549 26550 26551 26552
1 2,1 9,6 26553 26554 26555 26556 26557 26558 26559 26560 26561 26562 26563 26564 26565 26566 26567 26568
1.5 2,6 14,4 26569 26570 26571 26572 26573 26574 26575 26576 26577 26578 26579 26580 26581 26582 26583 26584
