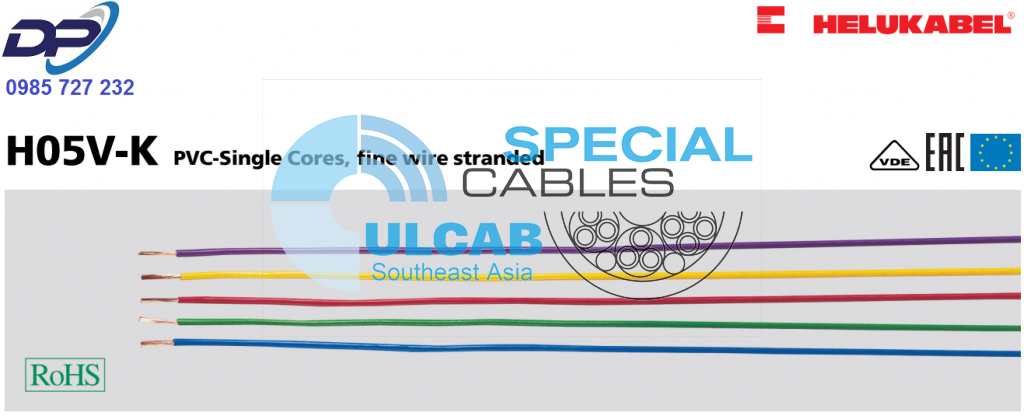

H05V-K

PVC-Single Cores, fine wire stranded

Logo Image Logo Image Logo Image

Technical data

  • PVC single cores to
    DIN VDE 0285-525-2-31 /
    DIN EN 50525-2-31 and IEC 60227-3
  • Temperature range
    flexing -5°C to +70°C
    fixed installation -30°C to +80°C
  • Nominal voltage
    U0/U 300/500 V
  • Test voltage
    2000 V
  • Insulation resistance
    min. 10 MOhm x km
  • Minimum bending radius
    fixed insatallation 4x core Ø
  • Radiation resistance
    up to 80×106 cJ/kg (up to 80 Mrad)

Cable structure

  • Bare copper conductor, to
    DIN VDE 0295 cl.5, fine wire,
    BS 6360 cl.5, IEC 60228 cl.5
  • Core insulation of PVC
    compound type TI1 to
    DIN VDE 0207-363-3 / DIN EN 50363-3
    and IEC 60227-3
  • Core identification see table below

Properties

  • The materials used during manufacturing
    are cadmium-free, contain no silicone
    and are free from substances harmful
    to the wetting properties of lacquers

Tests

  • PVC self-extinguishing and flame retardant
    acc. to DIN VDE 0482-332-1-2 /
    DIN EN 60332-1-2 / IEC 60332-1-2

Note

  • The following colours are recommended:
    black, white, blue, grey, brown, red,
    orange, turquoise, violet and pink.
    Exceptions are the colours green and
    yellow; these are only permitted if the
    safety regulations allows. Green is
    permitted for the identification of
    luminous decorative chains. All
    2-coloured combinations of the
    above single colours are allowed

Application

These single cores are determined for the installation to the inside of apparatus as well as for the protective laying to the lightings, in dry rooms, in production facilities, switch and distributor boards, in tubes, under and surface mounting of plasters.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.

Downloads

Data sheet

H05V-K

Cross-
sec.

mm²

Outer Ø

min. – max.

mm

Cop.
weight

kg / km

black Green-yellow blue brown red white grey violet yellow pink green TRANS dark blue OR Other colours Two-colour u-blue
approx. RAL 9005 5015 8003 3000 9003 7001 4005 1021 3015 6018 5010 2003 5002
/opc/workarea/suppliers/STD/documents/Ring.jpg
Packing Coil in cardboard (100m)
H05V-K coil
Part no. 29081 29082 29083 29084 29085 29086 29087 29088 29089 29090 29091 29092 29093 29094 29095 29096 26386
0,5 2,1 – 2,5 4,8
Part no. 29097 29098 29099 29100 29101 29102 29103 29104 29105 29106 29107 29108 29109 29110 29111 29112 26387
0,75 2,2 – 2,7 7,2
Part no. 29113 29114 29115 29116 29117 29118 29119 29120 29121 29122 29123 29124 29125 29126 29127 29128 26388
1 2,4 – 2,8 9,6
Cross-
sec.

mm²

Outer Ø

min. – max.

mm

Cop.
weight

kg / km

black Green-yellow blue brown red white grey violet yellow pink green TRANS dark blue OR Other colours Two-colour u-blue
app. RAL 9005 5015 8003 3000 9003 7001 4005 1021 3015 6018 5010 2003 5002
/opc/workarea/suppliers/STD/documents/Fass.jpg
Packing Barrel (with various capacity)
H05V-K barrel
Part no. 26640 26641 26642 26643 26644 26645 26646 26647 26648 26649 26650 26651 26652 26653 26654 26655 26392
0,5 2,1 – 2,5 4,8
Part no. 26656 26657 26658 26659 26660 26661 26662 26663 26664 26665 26666 26667 26668 26669 26670 26671 26393
0,75 2,2 – 2,7 7,2
Part no. 26672 26673 26674 26675 26676 26677 26678 26679 26680 26681 26682 26683 26684 26685 26686 26687 26394
1 2,4 – 2,8 9,6
Cross-
sec.

mm²

Outer Ø

min. – max.

mm

Cop.
weight

kg / km

black Green-yellow blue brown red white grey violet yellow pink green TRANS dark blue OR Other colours Two-colour u-blue
approx. RAL 9005 5015 8003 3000 9003 7001 4005 1021 3015 6018 5010 2003
/opc/workarea/suppliers/STD/documents/Spule.jpg
Packing Spool (with various capacity)
H05V-K spool
Part no. 26590 26591 26592 26593 26594 26595 26596 26597 26598 26599 26600 26601 26602 26603 26604 26605 26389
0,5 2,1 – 2,5 4,8
Part no. 26606 26607 26608 26609 26610 26611 26612 26613 26614 26615 26616 26617 26618 26619 26620 26621 26390
0,75 2,2 – 2,7 7,2
Part no. 26622 26623 26624 26625 26626 26627 26628 26629 26630 26631 26632 26633 26634 26635 26636 26637 26391
1 2,4 – 2,8 9,6
