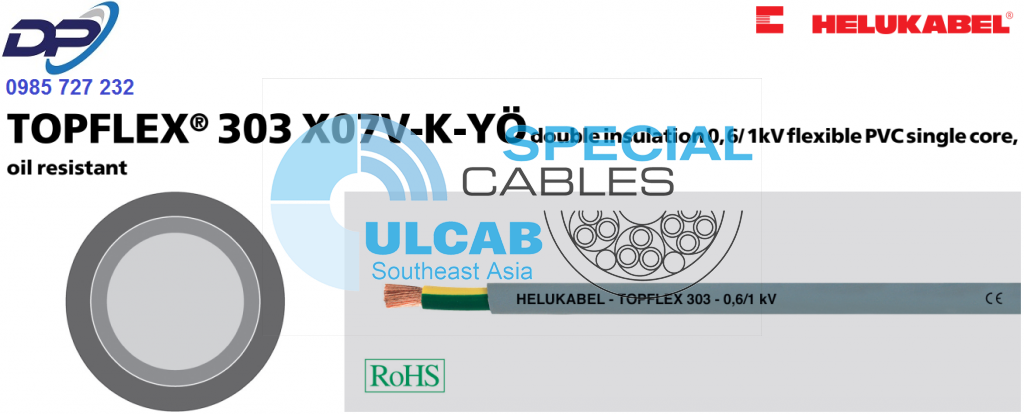

TOPFLEX® 303 X07V-K-YÖ |
double insulation 0,6/1 kV flexible PVC single core, oil resistant |
Technical data
- Special PVC single-core cable with double
insulation and oil resistant sheath - Temperature range
flexing -5°C to +80°C
fixed installation -40°C to +80°C - Nominal voltage
U0/U 600/1000 V - A.C. test voltage, 50 Hz
3000 V - Insulation resistance
min. 20 MOhm/km - Minimum bending radius
flexing 12x cable Ø
Cable structure
- Bare copper conductor, to
DIN VDE 0295 cl.5, fine wire,
BS 6360 cl.5, IEC 60228 cl.5 - Core insualtion of special PVC
- Core identification BK or GN-YE
- Outer sheath of special PVC
compound type TM5 to
DIN VDE 0207-363-4-1/ DIN EN 50363-4-1 - Sheath colour: grey
Properties
- Extensively oil resistant,
oil-/chemical resistance
see “Technical Informations” - Improved mechanical protection due the
double insulation
Tests
- PVC self-extinguishing and flame retardant
acc. to DIN VDE 0482-332-1-2 /
DIN EN 60332-1-2 / IEC 60332-1-2
Note
- AWG sizes are approximate equivalent
values. The actual cross section is in mm².
Application
This cable is used for conditions of increased mechanical stress. For flexible use with free movement without tensile stress or forced movements in dry, moist and wet environments, but not suitable for use outdoors. The cable may be laid in trays, troughs and channels.
CE = Product conforms with Low-Voltage Directive 2014/35/EU.
Downloads
core-/sheath-color black/grey
| Part No. | No.cores x
cross-sec. mm² |
Colour | Outer ø
ca. mm |
Cop.
weight kg / km |
Weight
ca. kg / km |
AWG-No. |
|---|---|---|---|---|---|---|
| 75460 | 1 x 6 | grau RAL 7001 | 8,5 | 58,0 | 94,0 | 10 |
| 75461 | 1 x 10 | grau RAL 7001 | 9,5 | 96,0 | 143,0 | 8 |
| 75462 | 1 x 16 | grau RAL 7001 | 11,5 | 154,0 | 209,0 | 6 |
| 75463 | 1 x 25 | grau RAL 7001 | 14,0 | 240,0 | 308,0 | 4 |
| 75464 | 1 x 35 | grau RAL 7001 | 15,0 | 336,0 | 440,0 | 2 |
| 75465 | 1 x 50 | grau RAL 7001 | 17,5 | 480,0 | 572,0 | 1 |
| 75466 | 1 x 70 | grau RAL 7001 | 20,0 | 672,0 | 792,0 | 2/0 |
| 75467 | 1 x 95 | grau RAL 7001 | 22,0 | 912,0 | 1155,0 | 3/0 |
| 72184 | 1 x 120 | grau RAL 7001 | 23,5 | 1152,0 | 1267,0 | 4/0 |
| 72185 | 1 x 150 | grau RAL 7001 | 26,5 | 1440,0 | 1650,0 | 300 kcmil |
| 75468 | 1 x 185 | grau RAL 7001 | 29,0 | 1776,0 | 2134,0 | 350 kcmil |
| 74221 | 1 x 240 | grau RAL 7001 | 31,0 | 2304,0 | 2943,0 | 500 kcmil |
| 72082 | 1 x 300 | grau RAL 7001 | 35,0 | 2880,0 | 3600,0 | 600 kcmil |
core-/sheath-color green-yellow/grey
| Part No. | No.cores x
cross-sec. mm² |
Colour | Outer ø
ca. mm |
Cop.
weight kg / km |
Weight
ca. kg / km |
AWG-No. |
|---|---|---|---|---|---|---|
| 75449 | 1 G 6 | grau RAL 7001 | 8,5 | 57,6 | 94,0 | 10 |
| 75469 | 1 G 10 | grau RAL 7001 | 9,5 | 96,0 | 143,0 | 8 |
| 73859 | 1 G 16 | grau RAL 7001 | 11,5 | 154,0 | 209,0 | 6 |
| 75470 | 1 G 25 | grau RAL 7001 | 14,0 | 240,0 | 308,0 | 4 |
| 75471 | 1 G 35 | grau RAL 7001 | 15,0 | 336,0 | 440,0 | 2 |
| 75472 | 1 G 50 | grau RAL 7001 | 17,5 | 480,0 | 572,0 | 1 |
| 75473 | 1 G 70 | grau RAL 7001 | 20,0 | 672,0 | 792,0 | 2/0 |
| 75474 | 1 G 95 | grau RAL 7001 | 22,0 | 912,0 | 1155,0 | 3/0 |
| 75475 | 1 G 120 | grau RAL 7001 | 23,5 | 1152,0 | 1267,0 | 4/0 |
| 75476 | 1 G 150 | grau RAL 7001 | 26,5 | 1440,0 | 1650,0 | 300 kcmil |
| 75477 | 1 G 185 | grau RAL 7001 | 29,0 | 1776,0 | 2134,0 | 350 kcmil |
| 75478 | 1 G 240 | grau RAL 7001 | 31,0 | 2304,0 | 2943,0 | 500 kcmil |
| 75479 | 1 G 300 | grau RAL 7001 | 35,0 | 2280,0 | 3600,0 | 600 kcmil |
