Steuerleitungen / Control Cables
2XSLCHK-J 3PLUS VFD
EMV Steuerleitung Halogenfrei
EMC Control Cable Double Screened Halogen-free
Application:
Cables with special construction, used to supply power to motors from frequency
converters while maintaining full electromagnetic compatibility (EMC). The XLPE
insulation improves current carrying capacity maintaining at the same time low
capacitance in comparison to PVC insulated cables. The cables are suitable for both
fixed installation and flexible connections in industrial equipment, process lines,
and machines operating in dry and damp rooms, also in public buildings. The entire
cable is made of halogen-free materials and does not emit noxious substances under
fire conditions. The symmetric construction of the cable (3 + 3PE) ensures symmetry
of voltages on motor terminals.
Current-Carrying Capacity (30°C Air temperature):
– 3×1,5+3G0,25 23 Amp
– 3×2,5+3G0,5 32 Amp
– 3×4+3G0,75 42 Amp
– 3×6+3G1,0 54 Amp
– 3×10+31,5 75 Amp
– 3×16+3G2,5 100 Amp
– 3×25+3G4 127 Amp
– 3×35+3G6 158 Amp
– 3×50+3G10 192 Amp
– 3×70+3G10 246 Amp
– 3×95+3G16 298 Amp
– 3×120+3G16 346 Amp
– 3×150+3G25 399 Amp
– 3×185+3G35 456 Amp
– 3×240+3G50 528 Amp

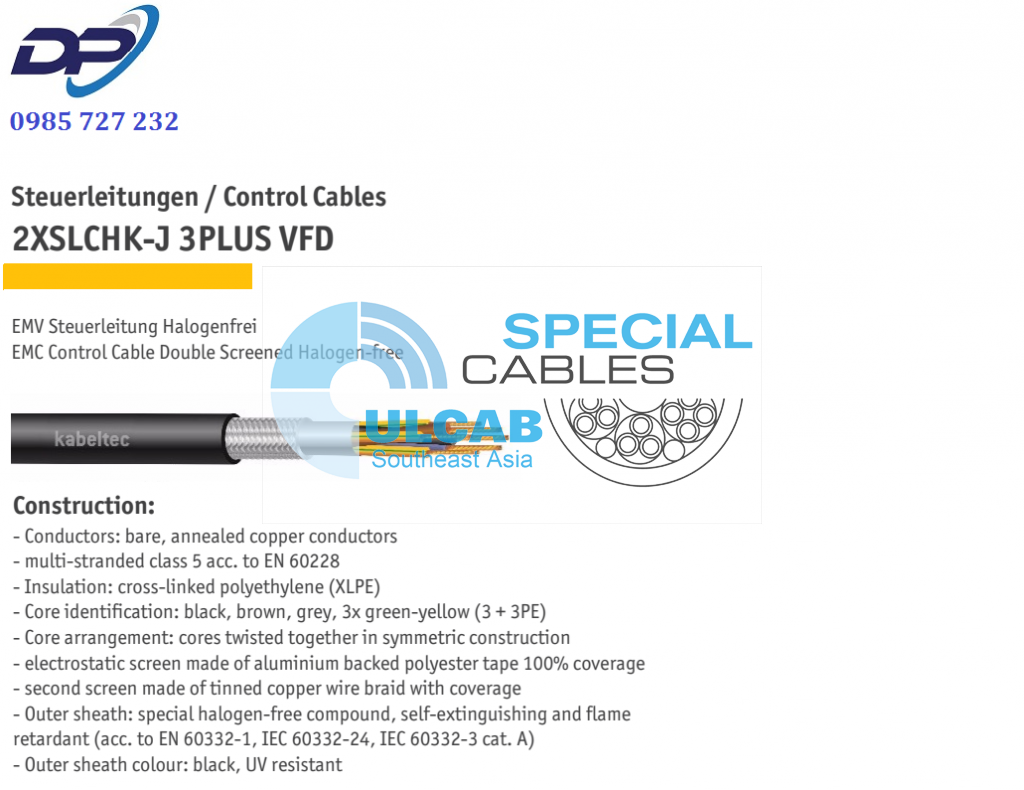

Construction:
– Conductors: bare, annealed copper conductors
– multi-stranded class 5 acc. to EN 60228
– Insulation: cross-linked polyethylene (XLPE)
– Core identification: black, brown, grey, 3x green-yellow (3 + 3PE)
– Core arrangement: cores twisted together in symmetric construction
– electrostatic screen made of aluminium backed polyester tape 100% coverage
– second screen made of tinned copper wire braid with coverage
– Outer sheath: special halogen-free compound, self-extinguishing and flame
retardant (acc. to EN 60332-1, IEC 60332-24, IEC 60332-3 cat. A)
– Outer sheath colour: black, UV resistant
Technical Data:
| Conductor Material | Copper, bare |
| Conductor class | Class 5 acc. to EN 60228 |
| core insulation | Cross-linked polyethylene (XLPE), PN-EN 60811- 201/202/203 |
| core identification | black, brown, grey 3x green-yellow (3 + 3PE) |
| stranding | Cores twisted together in symmetric construction, protective earth split into three arranged symetrically every 120° |
| outer sheath | Special halogen free compound |
| sheath colour | Black, UV-resistant |
| rated voltage [V] | 600 / 1000 |
| testing voltage [V] | 2500 |
| conductor resistance | acc. to EN60228 |
| insulation resistance | 200MΩxkm |
| current carrying capacity | as above |
| min. bending radius fixed [xd] | up to: 20 mm Ø: 7,5 x d > 20 mm Ø: 10 x d |
| min. bending radius moved [xd] | up to: 20 mm Ø: 10 x d up to 20 mm Ø: 15 x d > 20 mm Ø: 10 x d |
| working temp fixed min/max [C] | 40°C up to + 80°C |
| working temp moved min/mac [C] | -5°C up to + 80°C |
| temp at conductor max. | +90°C |
| burning behaviour | EN 60332-1, EN 60332-3, IEC 60332-3:flame-retardant and self-extinguishing |
| Approvals | VDE 0295 UV resistant Low Smoke Emissions : EN 61034-1 EN 61034-2 Halogen Free : EN 50267-2-2 |
Kabel / Cable
| Part No. | no. of cores x cross section | outer Ø ca. Mm | Copper weight kg/100m |
weight kg/100m |
| 18030150SW/LSOH | 3 x 1.50 +3G0.25 | 11.3 | 8.6 | 14 |
| 18030250SW/LSOH | 3 x 2.50 +3G0.5 | 12.2 | 14.3 | 21.9 |
| 18030400SW/LSOH | 3 x 4 +3G0.75 | 13.5 | 22.4 | 32.3 |
| 18030600SW/LSOH | 3 x 6 +3G1 | 14.7 | 29.8 | 42.9 |
| 18031000SW/LSOH | 3 x 10 +3G1.50 | 17 | 49.1 | 61.5 |
| 18031600SW/LSOH | 3 x 16 +3G2.50 | 19.7 | 72.3 | 81.9 |
| 18032500SW/LSOH | 3 x 25 +3G4 | 24 | 113.7 | 132.4 |
| 18033500SW/LSOH | 3 x 35 +3G6 | 26.2 | 153.5 | 171.8 |
| 18035000SW/LSOH | 3 x 50 +3G10 | 30.1 | 220.7 | 239.8 |
| 18037000SW/LSOH | 3 x 70 +3G10 | 35.2 | 287.1 | 305.5 |
| 18039500SW/LSOH | 3 x 95 +3G16 | 39.1 | 395.3 | 416.1 |
| 180312000SW/LSOH | 3 x 120 +3G16 | 42.5 | 483.6 | 507.3 |
| 180315000SW/LSOH | 3 x 150 +3G25 | 48.6 | 541.1 | 612.7 |
| 180318500SW/LSOH | 3 x 185 +3G35 | 54.2 | 696.8 | 718.9 |
| 180324000SW/LSOH | 3 x 240 +3G50 | 60.5 | 854 | 959.4 |
