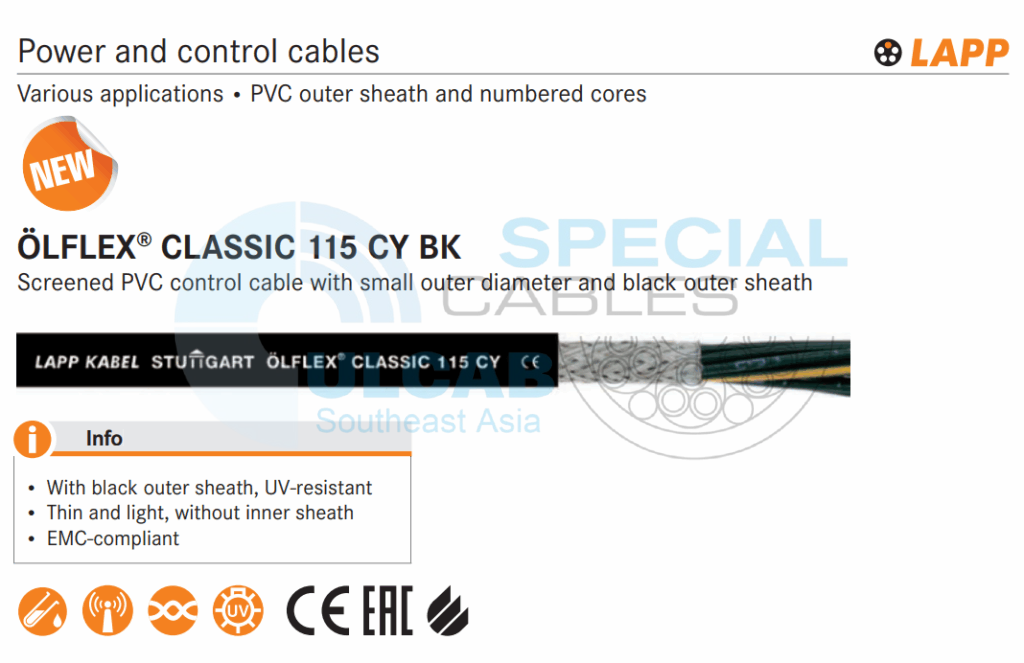

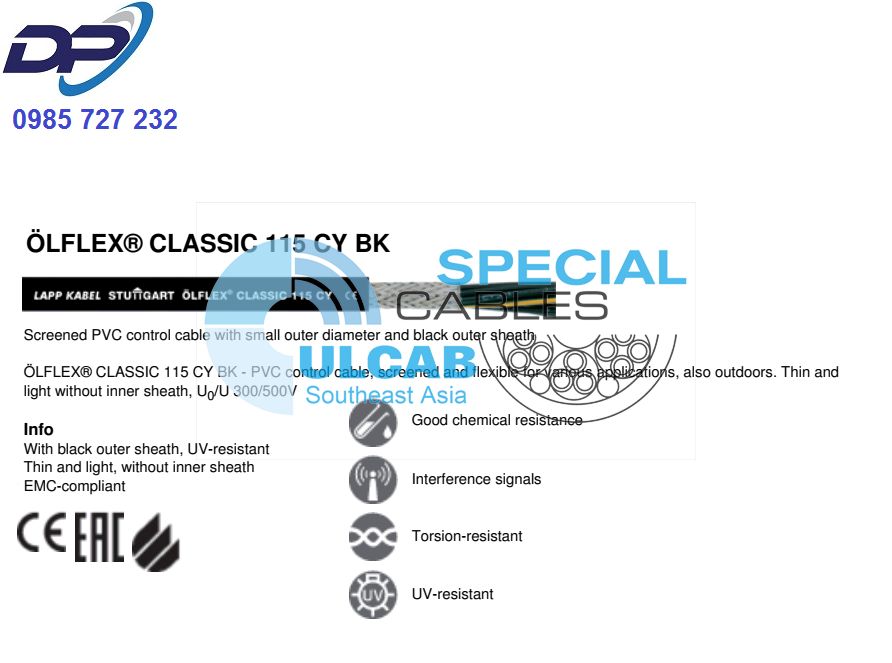

ÖLFLEX® CLASSIC 115 CY BK

Screened PVC control cable with small outer diameter and black outer sheath

ÖLFLEX® CLASSIC 115 CY BK – PVC control cable, screened and flexible for various applications, also outdoors. Thin and light without inner sheath, U0/U 300/500V

  • With black outer sheath, UV-resistant
  • Thin and light, without inner sheath
  • EMC-compliant

Good chemical resistance Interference signals Torsion-resistant UV-resistant

CE EAC Fire

Benefits

  • Suitable for outdoor applications
  • Space-saving installation due to small cable diameters

Application range

  • Measurement and control technology
  • Plant engineering
    Industrial machinery
    Heating and air-conditioning systems
  • Conveyor and transport systems
  • Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
  • Suitable for outdoor applications

Product features

  • UV and weather-resistant according to ISO 4892-2
  • Flame-retardant according IEC 60332-1-2
  • Good chemical resistance, see catalogue appendix T1
  • High degree of screening
    low transfer impedance
    (max. 250 Ω/km at 30 MHz)

Norm references / Approvals

  • Based on EN 50525-2-51

Product Make-up

  • Fine-wire strand made of bare copper wires
  • PVC insulation LAPP P8/1
  • Cores twisted in layers
  • Plastic foil wrapping
  • Tinned-copper braiding
  • PVC outer sheath, black

Classification ETIM 5

  • ETIM 5.0 Class-ID: EC000104
  • ETIM 5.0 Class-Description: Control cable

Classification ETIM 6

  • ETIM 6.0 Class-ID: EC000104
  • ETIM 6.0 Class-Description: Control cable

Core identification code

  • Black with white numbers acc. to VDE 0293-334

Conductor stranding

  • Fine wire according to VDE 0295,
    class 5/IEC 60228 class 5

Torsion movement in WTG

  • TW-0 & TW-1, refer to Appendix T0

Minimum bending radius

  • Occasional flexing: 20 x outer diameter
  • Fixed installation: 6 x outer diameter

Nominal voltage

  • U0/U: 300/500 V

Test voltage

  • Core/core: 4000 V
  • Core/screen: 2000 V

Protective conductor

  • G = with GN-YE protective conductor
  • X = without protective conductor

Temperature range

  • Occasional flexing: -5°C to +70°C
  • Fixed installation: -40°C to +80°C
Article number  Number of cores and mm² per
conductor
Outer diameter [mm]  Copper index (kg/km)  Weight (kg/km)
1136510 2 X 0.5  5.8 36 54
1136511 3 G 0.5  6.1 43 63
1136512 3 X 0.5  6.1 43 63
1136513 4 G 0.5  6.5 49 71
1136514 4 X 0.5  6.5 49 71
1136515 5 G 0.5  7 57 86
1136516 5 X 0.5  7 57 86
1136517 7 G 0.5  7.5 69 105
1136518 7 X 0.5  7.5 69 105
1136519 12 G 0.5  9.9 104 163
1136520 12 X 0.5  9.9 104 163
1136521 18 G 0.5  11.5 141 226
1136522 25 G 0.5  13.4 211 350
1136523 2 X 0.75  6.2 43 59
1136110 3 G 0.75  6.5 52 76
1136525 3 X 0.75  6.5 52 76
1136111 4 G 0.75  7 61 91
1136527 4 X 0.75  7 61 91
1136113 5 G 0.75  7.7 72 100
1136529 5 X 0.75  7.7 72 100
1136114 7 G 0.75  8.3 89 127
1136531 7 X 0.75  8.3 89 127
1136115 12 G 0.75  10.9 138 232
1136533 18 G 0.75  12.7 211 292
1136534 25 G 0.75  14.8 280 435
1136535 2 X 1.0  6.5 51 71
1136536 3 G 1.0  6.8 62 86
1136537 3 X 1.0  6.8 62 86
1136538 4 G 1.0  7.3 74 98
1136539 4 X 1.0  7.3 74 98
1136540 5 G 1.0  8.1 88 121
1136541 5 X 1.0  8.1 88 121
1136542 7 G 1.0  8.8 112 147
1136543 7 X 1.0  8.8 112 147
1136544 12 G 1.0  11.5 185 249
1136545 18 G 1.0  13.9 268 364
1136546 25 G 1.0  15.9 354 486
1136547 2 X 1.5  7.1 65 86
1136548 3 G 1.5  7.5 82 112
1136549 3 X 1.5  7.5 82 112
1136550 4 G 1.5  8.2 100 135
1136551 4 X 1.5  8.2 100 135
1136552 5 G 1.5  8.9 119 148
1136553 5 X 1.5  8.9 119 148
1136554 7 G 1.5  9.9 154 192
1136555 7 X 1.5  9.9 154 192
1136556 12 G 1.5  13 268 332
1136557 18 G 1.5  15.6 373 484
1136558 25 G 1.5  17.9 530 734
1136559 34 G 1.5  20.8 683 944
1136560 3 G 2.5  8.9 118 151
1136561 4 G 2.5  9.9 147 188
1136562 5 G 2.5  11 176 224
1136563 7 G 2.5  11.9 253 294
1136564 12 G 2.5  16 355 521
1136565 18 G 2.5  19 569 740
1136566 4 G 4.0  11.6 248 287
1136567 4 G 6.0  14.2 343 424
1136568 4 G 10.0  17.2 495 637
1136569 5 G 10.0  19.5 592 824
1136570 4 G 16.0  20.2 800 1050
1136571 5 G 16.0  22.6 895 1285
1136572 4 G 25.0  25.1 1075 1413
1136573 4 G 35.0  28 1576 1867
