Dây Cáp Điều Khiển LAPP KABEL ÖLFLEX® CLASSIC 128 CH BK 0,6/1 kV, -40°C to +80°C, BLACK | Chính Hãng – Giá Tốt Nhất
Hãng sản xuất: LAPP KABEL
Xuất xứ thương hiệu: Germany
(Giấy tờ: CO,CQ,BIL,PACKING LIST, TỜ KHAI đầy đủ)
LAPP KABEL ÖLFLEX® CLASSIC 128 CH BK 0,6/1 kV là dòng cáp điện và cáp điều khiển không halogen, ruột đồng trần nhiều sợi mảnh, có lớp bọc màng nhựa không halogen và lớp bện đồng thiếc chống nhiễu EMC. Thiết kế mềm dẻo giúp dễ lắp đặt, đường kính nhỏ giúp tiết kiệm không gian. Cáp chống cháy, không lan truyền lửa, ít khói, chịu UV, thời tiết và ozone, phù hợp cho tòa nhà công cộng, nhà máy, máy móc công nghiệp, hệ thống HVAC và các ứng dụng ngoài trời. Sản phẩm đáp ứng IEC 60332, IEC 60754, IEC 61034, ISO 4892-2, EN 50396 và dựa trên EN 50525-3-11.

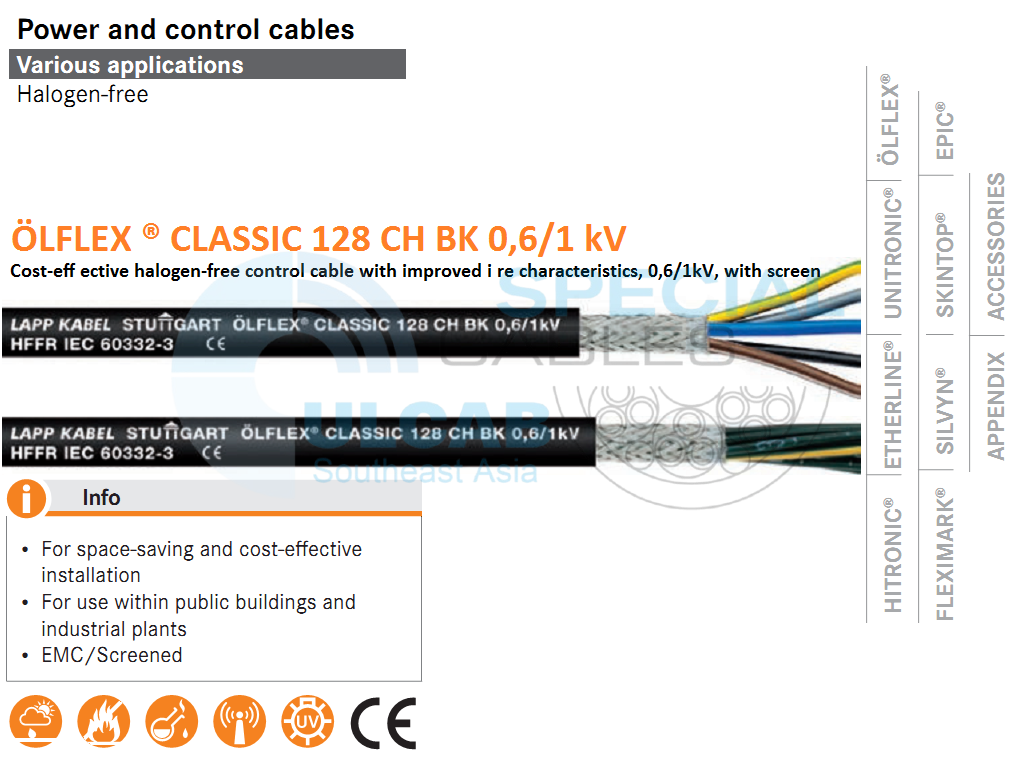

ÖLFLEX® CLASSIC 128 CH BK 0,6/1 kV
Cost-effective halogen-free control cable with improved fire characteristics, 0,6/1kV, with screen
ÖLFLEX® CLASSIC 128 CH BK 0,6/1 kV Power and Control Cable, halogen-free/ highly flame retardant, HFFR, flexible, conductor class 5, screened, public buildings
- For space-saving and cost-effective installation
- For use within public buildings and industrial plants
- EMC/Screened
Benefits
- Easy handling and installation due to flexible design
- Space-saving installation due to small cable diameters
Application range
- Public buildings
- Plant engineering
Industrial machinery
Heating and air-conditioning systems - Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
- Suitable for outdoor applications
- In EMC-sensitive environments
(electromagnetic compatibility)
Product features
- Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable) - No flame-propagation according to IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
- Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity) - Low smoke density according to IEC 61034-2
- UV and weather-resistant according to ISO 4892-2
- Ozone-resistant according to EN 50396
Norm references / Approvals
- Based on EN 50525-3-11
Product Make-up
- Fine-wire strand made of bare copper wires
- Core insulation: Halogen-free
- Halogen-free plastic foil wrapping
- Tinned-copper braiding
- Outer sheath made of special halogen-free coumpound, black
Technical Data
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Low voltage power cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000057
- ETIM 6.0 Class-Description: Low voltage power cable
Core identification code
- Up to 5 cores: colour-coded according to VDE 0293-308, refer to Appendix T9
- From 6 cores: black with white numbers
Conductor stranding
- Fine wire according to VDE 0295,
class 5/IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 600/1000 V
Test voltage
- Core/core: 4000 V
- Core/screen: 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) | |
|---|---|---|---|---|---|
|
1123557
|
2 X 1.0 | 8.2 | 39.5 | 107 | |
|
1123558
|
3 G 1.0 | 8.6 | 51 | 129 | |
|
1123559
|
4 G 1.0 | 9.2 | 62.8 | 153 | |
|
1123560
|
5 G 1.0 | 10.0 | 76 | 181 | |
|
1123561
|
7 G 1.0 | 10.7 | 97.2 | 220 | |
|
1123562
|
12 G 1.0 | 14.0 | 169.1 | 343 | |
|
1123564
|
25 G 1.0 | 19.0 | 315.5 | 667 | |
|
1123565
|
2 X 1.5 | 9.2 | 53.2 | 135 | |
|
1123566
|
3 G 1.5 | 9.7 | 69.5 | 164 | |
|
1123567
|
4 G 1.5 | 10.4 | 86.5 | 199 | |
|
1123568
|
5 G 1.5 | 11.3 | 104.3 | 236 | |
|
1123569
|
7 G 1.5 | 12.2 | 136.5 | 292 | |
|
1123570
|
12 G 1.5 | 16.3 | 238.3 | 498 | |
|
1123571
|
18 G 1.5 | 19.4 | 355.4 | 700 | |
|
1123573
|
2 X 2.5 | 10.4 | 79.4 | 176 | |
|
1123574
|
3 G 2.5 | 10.9 | 106.1 | 218 | |
|
1123575
|
4 G 2.5 | 11.8 | 134.3 | 268 | |
|
1123576
|
5 G 2.5 | 12.9 | 158.3 | 322 | |
|
1123577
|
7 G 2.5 | 14.4 | 225 | 411 | |
|
1123578
|
12 G 2.5 | 19.3 | 383.6 | 704 | |
|
1123579
|
18 G 2.5 | 23.0 | 548.9 | 1058 | |
|
1123580
|
25 G 2.5 | 26.8 | 761.7 | 1449 | |
|
1123582
|
4 G 4.0 | 13.5 | 211.9 | 357 | |
|
1123583
|
5 G 4.0 | 14.9 | 250.3 | 434 | |
|
1123584
|
3 G 6.0 | 13.7 | 232.1 | 372 | |
|
1123585
|
4 G 6.0 | 15.1 | 298.5 | 472 | |
|
1123586
|
5 G 6.0 | 16.8 | 356.1 | 611 |
