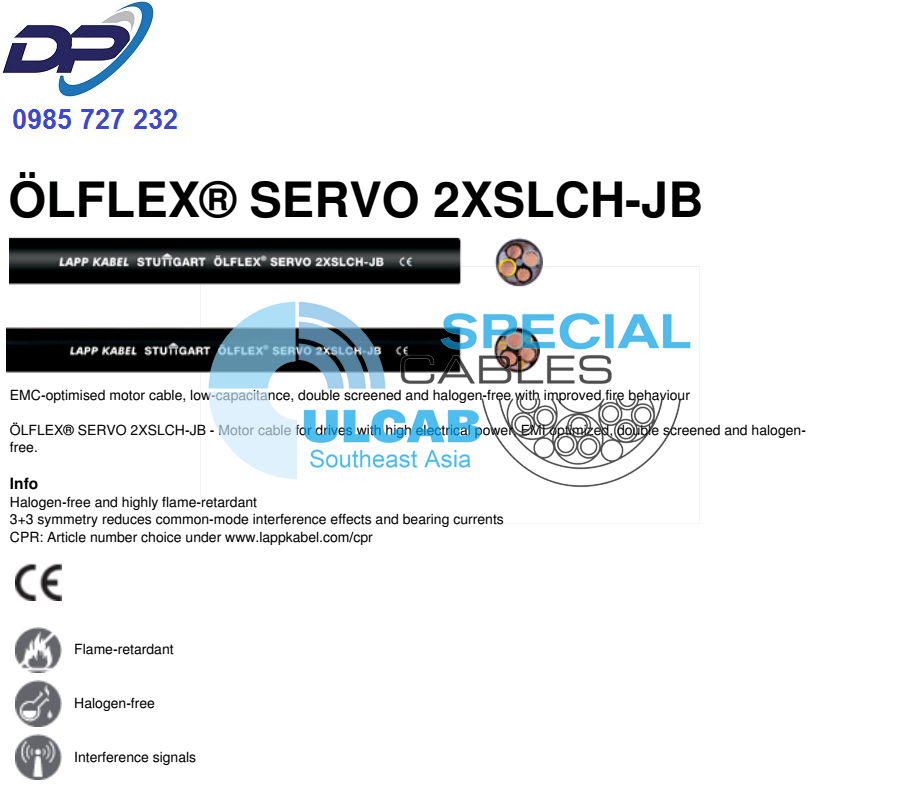

ÖLFLEX® SERVO 2XSLCH-JB
EMC-optimised motor cable, low-capacitance, double screened and halogen-free with improved fire behaviour
ÖLFLEX® SERVO 2XSLCH-JB – Motor cable for drives with high electrical power, EMI optimized, double screened and halogen-free.
- Halogen-free and highly flame-retardant
- 3+3 symmetry reduces common-mode interference effects and bearing currents
- CPR: Article number choice under www.lappkabel.com/cpr
Benefits
- EMC-compliant installation of power drive systems conforming to EN 61800-3
- High power transmission for large drives
- Low capacitance design enables longer cable connection between frequency converter and motor
- Symmetrical 3+3 Version supports the reduction of damaging bearing currents
- Reduction of flame propagation, density and toxicity of smoke gases in event of fire
Application range
- Connecting cable between frequency converter and motor
- In dry, damp or wet interiors
- Paper industry, automotive industry
- Food production and packaging machinery
- Machine tools
Product features
- Low-capacitance design
- Fire behaviour:
– Flame-retardant (IEC 60332-1-2)
– Halogen-free (IEC 60754-1)
– No corrosive gases (IEC 60754-2)
– Low smoke density (IEC 61034-2)
– Low toxicity (EN 50305) - No flame-propagation according to IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
Norm references / Approvals
- Based on VDE 0276, 0250, 0207
Product Make-up
- Fine-wire, bare copper conductor
- Core insulation: XLPE
- Cores twisted concentrically (symmetrically splitted protective conductor of 3+3 version is gusset-filling divided between the power cores)
- Screening: wrapping of laminated aluminium foil in combination with tinned copper braiding
- Outer sheath: Halogen-free special compound, colour black (RAL 9005)
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000057
- ETIM 5.0 Class-Description: Low voltage power cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000057
- ETIM 6.0 Class-Description: Low voltage power cable
Core identification code
- Colours according to HD 308 S2 VDE 0293-308
Conductor stranding
- Fine wire according to VDE 0295 Class 5/ IEC 60228 Class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 600/1000 V
Test voltage
- Core/Core: 4 kV
- Core/Screen: 4 kV
Protective conductor
- G = with GN-YE protective conductor
X = without protective conductor - Protective conductor of 3+3 version is gusset-filling divided between power cores
Temperature range
- Flexing: -15°C to +90°C
- Fixed installation: -40°C to +90°C
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® SERVO 2XSLCH-JB / 4-core version | ||||
| 1133500 | 4 G 1.5 | 10.9 | 95 | 230 |
| 1133501 | 4 G 2.5 | 12 | 150 | 300 |
| 1133502 | 4 G 4.0 | 14.5 | 235 | 485 |
| 1133503 | 4 G 6.0 | 16 | 320 | 630 |
| 1133504 | 4 G 10.0 | 18.4 | 533 | 860 |
| 1133505 | 4 G 16.0 | 21 | 789 | 1290 |
| 1133506 | 4 G 25.0 | 25.9 | 1236 | 1860 |
| 1133507 | 4 G 35.0 | 29.3 | 1662 | 2610 |
| 1133508 | 4 G 50.0 | 34.5 | 2345 | 2950 |
| 1133509 | 4 G 70.0 | 38.2 | 3196 | 3950 |
| 1133510 | 4 G 95.0 | 43 | 4316 | 5300 |
| 1133511 | 4 G 120.0 | 47.8 | 5435 | 6600 |
| 1133512 | 4 G 150.0 | 55.7 | 6394 | 7043 |
| 1133513 | 4 G 185.0 | 60.3 | 7639 | 8384 |
| ÖLFLEX® SERVO 2XSLCH-JB / 3+3 core version | ||||
| 1133514 | 3 X 1,5 + 3 G 0,25 | 11.4 | 88 | 140 |
| 1133515 | 3 X 2,5 + 3 G 0,5 | 12.4 | 144 | 220 |
| 1133516 | 3 X 4 + 3 G 0,75 | 13.9 | 224 | 323 |
| 1133517 | 3 X 6 + 3 G 1 | 15.2 | 276 | 420 |
| 1133518 | 3 X 10 + 3 G 1,5 | 17.2 | 491 | 615 |
| 1133519 | 3 X 16 + 3 G 2,5 | 20.7 | 723 | 819 |
| 1133520 | 3 X 25 + 3 G 4 | 23.8 | 1136 | 1325 |
| 1133521 | 3 X 35 + 3 G 6 | 26.9 | 1535 | 1718 |
| 1133522 | 3 X 50 + 3 G 10 | 31.8 | 2156 | 2399 |
| 1133523 | 3 X 70 + 3 G 10 | 34.6 | 2871 | 3056 |
| 1133524 | 3 X 95 + 3 G 16 | 38.5 | 3953 | 4162 |
| 1133525 | 3 X 120 + 3 G 16 | 42.7 | 4836 | 5074 |
| 1133526 | 3 X 150 + 3 G 25 | 47.8 | 5412 | 6128 |
| 1133527 | 3 X 185 + 3 G 35 | 52.6 | 7041 | 7500 |
| 1133528 | 3 X 240 + 3 G 50 | 61.9 | 8986 | 9770 |
