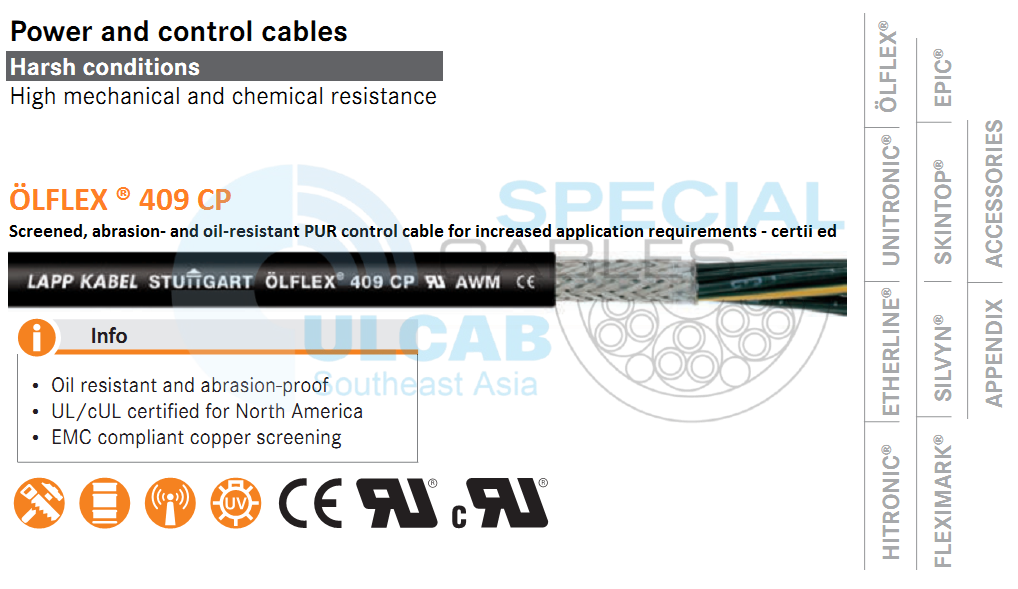

ÖLFLEX® 409 CP
Screened, abrasion- and oil-resistant PUR control cable for increased application requirements – certified
ÖLFLEX® 409 CP – Screened PUR control cable for oil and abrasion resistant use in industrial machine tools and appliances in North America with UL/cUL certification
- Oil resistant and abrasion-proof
- UL/cUL certified for North America
- EMC compliant copper screening
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-334
Conductor stranding
- Fine wire according to VDE 0295,
class 5/IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
- UL/CSA: 1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C (UL: +80°C)
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor |
Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) |
| 1321852 | 2 X 0.75 | 7 | 29 | 75 |
| 1321103 | 3 G 0.75 | 7.3 | 37 | 89 |
| 1321104 | 4 G 0.75 | 7.8 | 44 | 104 |
| 1321105 | 5 G 0.75 | 8.4 | 53 | 120 |
| 1321107 | 7 G 0.75 | 9 | 67 | 146 |
| 1321110 | 10 G 0.75 | 10.9 | 94 | 196 |
| 1321112 | 12 G 0.75 | 11.2 | 107 | 219 |
| 1321118 | 18 G 0.75 | 12.9 | 152 | 298 |
| 1321125 | 25 G 0.75 | 14.8 | 200 | 387 |
| 1321902 | 2 X 1.0 | 7.3 | 34 | 84 |
| 1321203 | 3 G 1.0 | 7.6 | 43 | 99 |
| 1321204 | 4 G 1.0 | 8.1 | 53 | 116 |
| 1321205 | 5 G 1.0 | 8.8 | 64 | 137 |
| 1321207 | 7 G 1.0 | 9.4 | 83 | 167 |
| 1321210 | 10 G 1.0 | 11.5 | 116 | 228 |
| 1321212 | 12 G 1.0 | 11.8 | 133 | 255 |
| 1321218 | 18 G 1.0 | 13.8 | 191 | 355 |
| 1321225 | 25 G 1.0 | 15.7 | 272 | 474 |
| 1321952 | 2 X 1.5 | 7.9 | 43 | 99 |
| 1321303 | 3 G 1.5 | 8.3 | 57 | 119 |
| 1321304 | 4 G 1.5 | 8.9 | 71 | 143 |
| 1321305 | 5 G 1.5 | 9.6 | 85 | 167 |
| 1321307 | 7 G 1.5 | 10.3 | 112 | 207 |
| 1321312 | 12 G 1.5 | 13.3 | 182 | 326 |
| 1321318 | 18 G 1.5 | 15.3 | 277 | 464 |
| 1321325 | 25 G 1.5 | 17.5 | 375 | 609 |
| 1321403 | 3 G 2.5 | 9.6 | 86 | 166 |
| 1321404 | 4 G 2.5 | 10.3 | 110 | 203 |
| 1321405 | 5 G 2.5 | 11.2 | 134 | 243 |
| 1321407 | 7 G 2.5 | 12.1 | 178 | 305 |
| 1321412 | 12 G 2.5 | 15.8 | 311 | 503 |
| 1321504 | 4 G 4.0 | 11.9 | 163 | 276 |
| 1321505 | 5 G 4.0 | 13.2 | 199 | 340 |
| 1321604 | 4 G 6.0 | 13.4 | 232 | 368 |
| 1321605 | 5 G 6.0 | 14.7 | 284 | 450 |
| 1321704 | 4 G 10.0 | 16.8 | 397 | 644 |
| 1321705 | 5 G 10.0 | 18.7 | 486 | 785 |
| 1321804 | 4 G 16.0 | 19.6 | 639 | 931 |
| 1321805 | 5 G 16.0 | 22.4 | 786 | 1142 |
