Cáp Điều Khiển SEC/ Korea BFOU(C) – BFCU(C) 250V Instrumentation | Chính Hãng – Chống Nhiễu – Chịu Môi Trường Biền – Giá Tốt Nhất

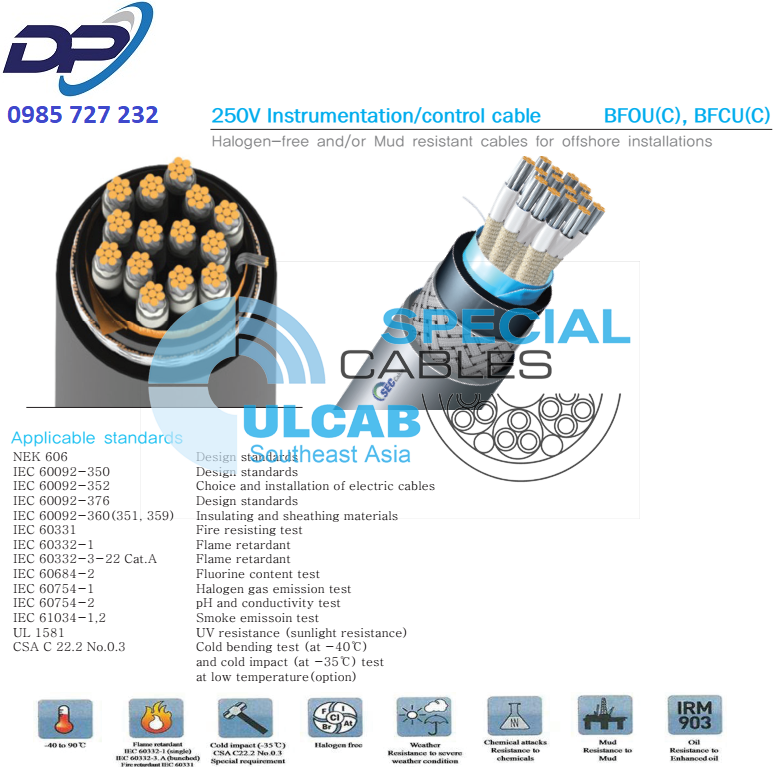

BFOU(C) – BFCU(C)

250V Instrumentation/control cable

Halogen-free and/or Mud resistant cables for offshore installations

Construction

  1. Conductor
    Tinned annealed copper wire according to IEC 60228 Class 2 or Class 5
  2. Fire proof layer
    Mica / Glass tape
  3. Insulation
    HF EPR as per IEC 60092-360(351), thickness as per IEC 60092-376
  4. Inner covering
    Halogen free thermoset compound, thickness according to
    IEC 60092-376
  5. Collective screen
    Screened by copper or aluminium backed polyester tape with tinned copper
    drain wire
  6. Braid armour
    Tinned copper wire braid (O), Galvanized steel wire braid (C)
  7. Outer sheath
    Halogen free thermoset compound SHF2 or halogen free MUD resistant
    thermoset compound SHF MUD complying with IEC 60092-360(359)
    and / or NEK 606.

Marking
e.g. : S.E.C. 250V S4/S8 BFOU(C)-M 2C X 0.75SQMM NEK 606 IEC 60332-3A
IEC 60331 MUD SEOUL Year Length

Applicable standards

NEK 606 Design standards
IEC 60092-350 Design standards
IEC 60092-352 Choice and installation of electric cables
IEC 60092-376 Design standards
IEC 60092-360(351, 359) Insulating and sheathing materials
IEC 60331 Fire resisting test
IEC 60332-1 Flame retardant
IEC 60332-3-22 Cat.A Flame retardant
IEC 60684-2 Fluorine content test
IEC 60754-1 Halogen gas emission test
IEC 60754-2 pH and conductivity test
IEC 61034-1,2 Smoke emissoin test
UL 1581 UV resistance (sunlight resistance)
CSA C 22.2 No.0.3 Cold bending test (at -40℃)
and cold impact (at -35℃) test
at low temperature(option)
150/250 Multi-core, Mica tape,(HF-) EPR insulated, Collective screen, Halogen free Inner covering/Bedding, Braid armour, Halogen free
SHF2 or SHF MUD Resistance Instrumentation/control cables(Flame and Fire resistant) BFOU(C), BFCU©
No. of
Cores		 Conductor Insulation
Thick		 Inner Covering Outer Diameter Cable weight Conductor
Resistance(20°C)		 Inductance
Area Overall dia. Overall dia. Nom. Approx.
mm2 mm mm mm mm kg/km max.Ω /km mH/km
2 0.75 1.11 0.6 8.8 12.6 260 24.8 0.8
3 0.75 1.11 0.6 9.3 13.1 290 24.8 0.8
4 0.75 1.11 0.6 10.1 14.5 330 24.8 0.8
5 0.75 1.11 0.6 11 15.5 410 24.8 0.8
6 0.75 1.11 0.6 12 16.5 460 24.8 0.8
7 0.75 1.11 0.6 12 16.5 470 24.8 0.8
8 0.75 1.11 0.6 12.9 17.5 520 24.8 0.8
9 0.75 1.11 0.6 13.9 18.6 570 24.8 0.8
10 0.75 1.11 0.6 15 20 640 24.8 0.8
12 0.75 1.11 0.6 15.5 20.5 680 24.8 0.8
14 0.75 1.11 0.6 16.3 21.4 740 24.8 0.8
15 0.75 1.11 0.6 16.7 21.9 770 24.8 0.8
16 0.75 1.11 0.6 17.2 22.4 800 24.8 0.8
19 0.75 1.11 0.6 18.1 23.4 880 24.8 0.8
21 0.75 1.11 0.6 19.1 24.5 960 24.8 0.8
23 0.75 1.11 0.6 20 25.5 1,020 24.8 0.8
24 0.75 1.11 0.6 21.2 26.9 1,110 24.8 0.8
27 0.75 1.11 0.6 21.7 27.4 1,170 24.8 0.8
30 0.75 1.11 0.6 22.5 28.3 1,240 24.8 0.8
33 0.75 1.11 0.6 23.4 29.3 1,320 24.8 0.8
37 0.75 1.11 0.6 24.3 30.3 1,430 24.8 0.8
44 0.75 1.11 0.6 27.4 34.2 1,700 24.8 0.8
150/250 Multi-core, Mica tape,(HF-) EPR insulated, Collective screen, Halogen free Inner covering/Bedding, Braid armour, Halogen free
SHF2 or SHF MUD Resistance Instrumentation/control cables(Flame and Fire resistant) BFOU(C), BFCU©
No. of
Cores		 Conductor Insulation
Thick		 Inner Covering Outer Diameter Cable weight Conductor
Resistance(20°C)		 Inductance
Area Overall dia. Overall dia. Nom. Approx.
mm2 mm mm mm mm kg/km max.Ω /km mH/km
2 1 1.29 0.6 9.2 13.2 290 18.2 0.75
3 1 1.29 0.6 9.7 14.2 320 18.2 0.75
4 1 1.29 0.6 10.6 15.2 360 18.2 0.75
5 1 1.29 0.6 11.6 16.2 450 18.2 0.75
6 1 1.29 0.6 12.5 17.3 500 18.2 0.75
7 1 1.29 0.6 12.5 17.3 510 18.2 0.75
8 1 1.29 0.6 13.5 18.4 570 18.2 0.75
9 1 1.29 0.6 14.5 19.6 630 18.2 0.75
10 1 1.29 0.6 15.8 21 700 18.2 0.75
12 1 1.29 0.6 16.3 21.5 760 18.2 0.75
14 1 1.29 0.6 17.2 22.5 820 18.2 0.75
15 1 1.29 0.6 17.6 23 850 18.2 0.75
16 1 1.29 0.6 18.1 23.5 890 18.2 0.75
19 1 1.29 0.6 19.1 24.6 990 18.2 0.75
21 1 1.29 0.6 20.1 25.7 1,060 18.2 0.75
23 1 1.29 0.6 21.1 26.9 1,140 18.2 0.75
24 1 1.29 0.6 22.3 28.3 1,240 18.2 0.75
27 1 1.29 0.6 22.8 28.9 1,300 18.2 0.75
30 1 1.29 0.6 23.7 29.8 1,400 18.2 0.75
33 1 1.29 0.6 24.6 30.8 1,490 18.2 0.75
37 1 1.29 0.6 25.6 31.9 1,600 18.2 0.75
44 1 1.29 0.6 29.3 36.5 1,970 18.2 0.75
150/250 Multi-core, Mica tape,(HF-) EPR insulated, Collective screen, Halogen free Inner covering/Bedding, Braid armour, Halogen free
SHF2 or SHF MUD Resistance Instrumentation/control cables(Flame and Fire resistant) BFOU(C), BFCU©
No. of
Cores		 Conductor Insulation
Thick		 Inner Covering Outer Diameter Cable weight Conductor
Resistance(20°C)		 Inductance
Area Overall dia. Overall dia. Nom. Approx.
mm2 mm mm mm mm kg/km max.Ω /km mH/km
2 1.5 1.59 0.7 10 13.7 330 12.2 0.7
3 1.5 1.59 0.7 10.5 14.8 360 12.2 0.7
4 1.5 1.59 0.7 11.5 15.9 460 12.2 0.7
5 1.5 1.59 0.7 12.6 17.4 520 12.2 0.7
6 1.5 1.59 0.7 13.7 18.7 590 12.2 0.7
7 1.5 1.59 0.7 13.7 18.7 610 12.2 0.7
8 1.5 1.59 0.7 14.8 19.9 670 12.2 0.7
9 1.5 1.59 0.7 15.9 21.2 740 12.2 0.7
10 1.5 1.59 0.7 17.3 22.8 840 12.2 0.7
12 1.5 1.59 0.7 17.9 23.4 900 12.2 0.7
14 1.5 1.59 0.7 18.8 24.5 990 12.2 0.7
15 1.5 1.59 0.7 19.3 25 1,030 12.2 0.7
16 1.5 1.59 0.7 19.9 25.6 1,080 12.2 0.7
19 1.5 1.59 0.7 21 26.9 1,190 12.2 0.7
21 1.5 1.59 0.7 22.1 28.1 1,300 12.2 0.7
23 1.5 1.59 0.7 23.2 29.4 1,390 12.2 0.7
24 1.5 1.59 0.7 24.6 31 1,510 12.2 0.7
27 1.5 1.59 0.7 25.2 31.6 1,600 12.2 0.7
30 1.5 1.59 0.7 26.1 32.7 1,720 12.2 0.7
33 1.5 1.59 0.7 27.2 34.3 1,840 12.2 0.7
37 1.5 1.59 0.7 28.7 35.5 2,030 12.2 0.7
44 1.5 1.59 0.7 32.3 40 2,530 12.2 0.7
150/250 Multi-core, Mica tape,(HF-) EPR insulated, Collective screen, Halogen free Inner covering/Bedding, Braid armour, Halogen free
SHF2 or SHF MUD Resistance Instrumentation/control cables(Flame and Fire resistant) BFOU(C), BFCU©
No. of
Cores		 Conductor Insulation
Thick		 Inner Covering Outer Diameter Cable weight Conductor
Resistance(20°C)		 Inductance
Area Overall dia. Overall dia. Nom. Approx.
mm2 mm mm mm mm kg/km max.Ω /km mH/km
2 2.5 2.01 0.7 10.8 15.1 390 7.56 0.67
3 2.5 2.01 0.7 11.5 15.8 470 7.56 0.67
4 2.5 2.01 0.7 12.5 17 540 7.56 0.67
5 2.5 2.01 0.7 13.7 18.7 620 7.56 0.67
6 2.5 2.01 0.7 15 20 700 7.56 0.67
7 2.5 2.01 0.7 15 20 730 7.56 0.67
8 2.5 2.01 0.7 16.2 21.4 820 7.56 0.67
9 2.5 2.01 0.7 17.5 22.8 900 7.56 0.67
10 2.5 2.01 0.7 19 24.6 1,030 7.56 0.67
12 2.5 2.01 0.7 19.7 25.3 1,110 7.56 0.67
14 2.5 2.01 0.7 20.7 26.5 1,220 7.56 0.67
15 2.5 2.01 0.7 21.3 27.1 1,280 7.56 0.67
16 2.5 2.01 0.7 21.9 27.8 1,340 7.56 0.67
19 2.5 2.01 0.7 23.1 29.1 1,490 7.56 0.67
21 2.5 2.01 0.7 24.3 30.5 1,630 7.56 0.67
23 2.5 2.01 0.7 25.6 31.9 1,750 7.56 0.67
24 2.5 2.01 0.7 27.2 34.1 1,890 7.56 0.67
27 2.5 2.01 0.7 27.8 34.8 2,010 7.56 0.67
30 2.5 2.01 0.7 29.3 36 2,210 7.56 0.67
33 2.5 2.01 0.7 30.4 37.8 2,370 7.56 0.67
37 2.5 2.01 0.7 31.6 39.1 2,680 7.56 0.67
44 2.5 2.01 0.7 35.7 43.7 3,190 7.56 0.67
Conductor area.
(mm2)		 Capacitance (mF/km) Inductance (mH/km)
Shielded Unshielded Shielded Unshielded
0.75 90 80 0.8 0.8
1 100 85 0.75 0.75
1.5 115 110 0.7 0.7
2.5 135 110 0.67 0.67
