Data communication systems
Low frequency data transmission cables
Metal foil screened pairs

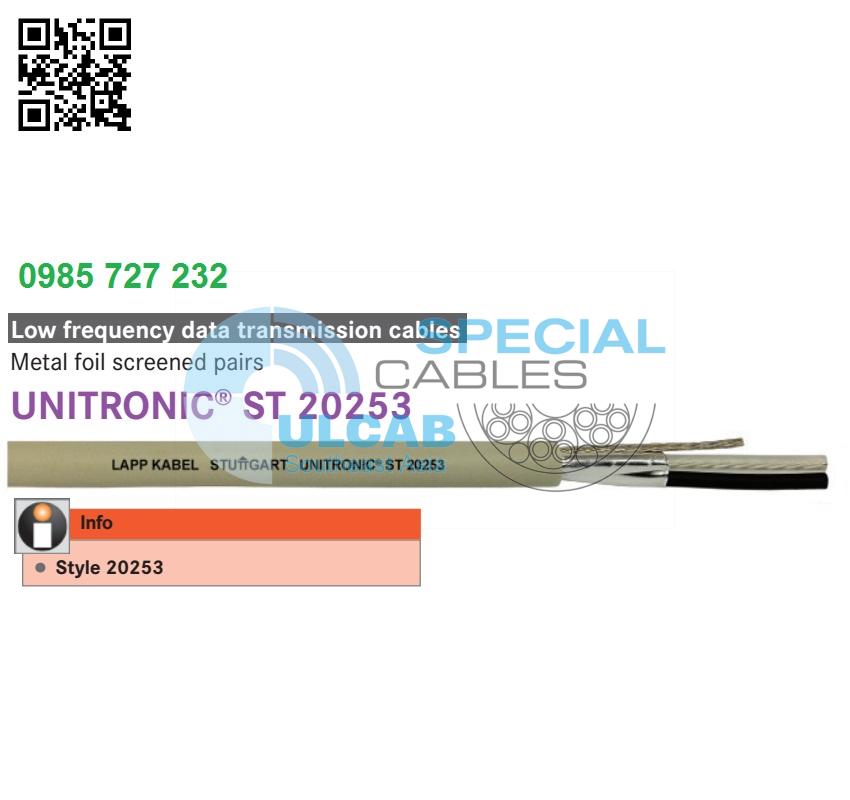

LAPPKABEL UNITRONIC® ST 20253

• product information ( PDF )

■ Application range

• Internal wiring for audio, transmission meas urement and control signals with minimum noise

• Cost effective and ideal for environment which less susceptible to noise

• For static laying in dry and damp environment

■ Product features

• 100% shielding, offers optimum protection against external interference at medium and high frequencies

• Ideal solution where flexibility and a high degree of screening is required

• Flame retardant in acc. to IEC 60332-1-2

■ Approvals (Norm references)

■ Design

• Multi-wire strands of tinned copper wires

• PE core insulation

• Cores twisted together

• Static screen of aluminium laminated plastic foil

• Tinned copper drain wire

• PVC outer sheath

• Colour: pebble grey, RAL 7032

Technical data

Core identification code
black, natural
Mutual capacitance
C/C: approx. 75 pF/m
C/S: approx. 144 pF/m
Peak operating voltage
600 V (not for power applications)
Specific insulation resistance
> 2 GOhm x km
Inductivity
approx. 0.65 mH/km
Minimum bending radius
10 x cable diameter
Test voltage
2000 V
Temperature range
-30°C to +80°C
Characteristic impedance
65 Ohm
