Cáp Tín Hiệu KURAMO “KVC-36SB” | Chính Hãng – Chống Nhiễu – Giá Tốt Nhất
Thương hiệu/ Brand-name: Kuramo Cable
Mã hàng/ Part number: KVC-36SB
Tiết diện lõi dẫn/ Conductor size: 0.1㎟ <28AWG> | 0.2㎟ <25AWG> | 0.3㎟ <23AWG> | 0.5㎟ <20AWG>
Số lõi/ Core Number: 1Pair đến 32Pair, 2 sợi đến 60 sợi
Xuất xứ/ Origin: Nhật Bản/ Japan
Vỏ ngoài / Sheath: Vỏ PVC Chống Dầu và chịu nhiệt/ Oil and heat resistant PVC (black)
Vỏ ngoài / Sheath color: Mầu đen / Black
Nhiệt độ hoạt động tối đa/ Temperature rating: -40℃ to 80℃
Mục đích sử dụng: Đi dây trong băng điều khiển của các thiết bị, phù hợp sử dụng trong môi trường dầu công nghiệp
Đặc tính nổi bật: Đặc tính uốn cong, chịu dầu tốt, đạt tiêu chuẩn UL, cUL…

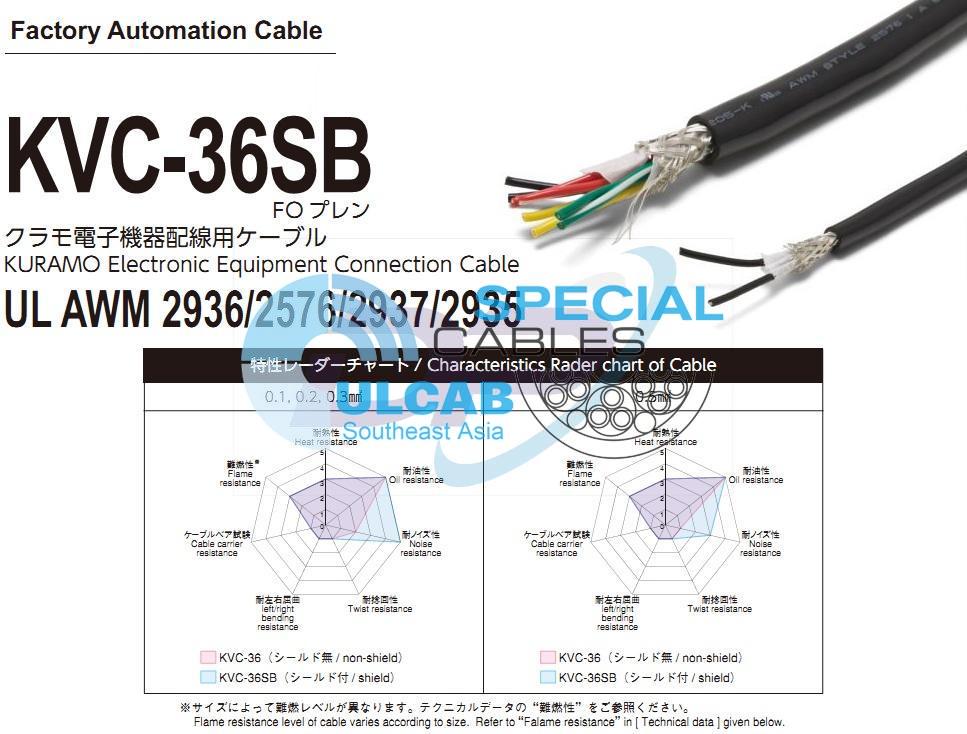

Factory Automation Cable
KVC-36SB
クラモ電子機器配線用ケーブル
KURAMO Electronic Equipment Connection Cable
UL AWM 2936/2576/2937/2935
用 途 / Use
■工作機械の制御回路への配線
Wiring to machine tool’s control circuits
■油環境下での配線
Wiring in oil environment
■耐ノイズ性要求箇所への配線(シールド付タイプ:KVC-36SB)
Wiring to the portion requiring noise resistance (Shielded type:KVC-36SB)
特 長 / Features
■耐ノイズ性(シールド付タイプ:KVC-36SB)
Noise resistance (Shielded type : KVC-36SB)
■柔軟性
Flexible
■耐油性
Oil resistance
■ UL・cUL 規格ケーブル
Cables designed to UL, cUL standards
認 証 / Approvals
使用温度範囲 / Temperature range
■固定時 / Fixed:-40 〜 80℃ ※
※ 0℃以下でご使用の際は、衝撃・屈曲・振動等の外的力が加わらないようにしてください。
If you use it in temperature less than 0℃ , you should be careful about shocks,
flexure, vibration and so on.
曲げ半径 / Bending radius
■固定時:ケーブル外径の 4 倍以上推奨
Fixed:4 times or more of the cable diameter
RoHS 指令 / RoHS Directive
■適合 / Conformity
テクニカルデータ / Technical data
ケーブルタイプ/ Cable designation | UL, cUL | |||
適用サイズ / Adaptation size | 2, 3 × 0.1 〜 0.3㎟ | 4 〜 64 × 0.1 〜 0.3㎟ | 2 〜 4 × 0.5㎟ | 5 〜 60 × 0.5㎟ |
定格電圧 / Voltage rating | 150V | 300V | ||
定格温度 / Temperature rating | 80℃ | |||
試験電圧 / Test voltage | AC1500V・1min | AC2000V・1min | ||
難燃性 / Flame resistance | FT2 | VW-1, FT1 | ||
適用規格 / Adaptation standard | UL AWM Style 2936 CSA C22.2 No.210 |
UL AWM Style 2576 CSA C22.2 No.210 |
UL AWM Style 2937 CSA C22.2 No.210 |
UL AWM Style 2935 CSA C22.2 No.210 |
KVC-36,KVC-36SB は電気用品安全法が適用されませんので、信号及び通信回路などの弱電流回路にご使用下さい。
KVC-36 and KVC-36SB are excluded to “Electrical Appliance and Material Safety Law”, for this reason, those cable should be used for cable connection to signal and
communication circuits and other weak current elctrical circuits JAPAN.
< 0.1, 0.2, 0.3㎟>
構造概略 / Construction
項目 / Item | KVC-36SB | |
品名 / Code | 0.1㎟ ,0.2㎟ | 0.3㎟ |
導体 / Conductor | すずめっき軟銅より線 Strands of wire composed of tin-coated annealed copper |
軟銅集合線 Strands of wire composed of annealed copper |
絶縁体 / Insulation | 105℃耐熱性ビニル混合物 / 105℃ heat resistant PVC | |
対より / Conductor stranding | 線心を対より / Twisted pair | |
より合わせ / Pair strand | 対より線心を円形により合わせ / Strands of twisted pair in circular form | |
テープ / Tape | テープ重ね巻き / Tape wrap around cores | |
シールド / Shield | すずめっき軟銅線編組 / Tin coated annealed copper braid | |
シース / Sheath | 耐油・耐熱性ビニル混合物(黒色)/ Oil and heat resistant PVC(black) |
線心識別 / Conductors identification
< 0.5㎟>
構造概略 / Construction
項目 / Item | KVC-36SB |
品名 / Code | 0.5㎟ |
導体 / Conductor | 軟銅集合線 / Strands of wire composed of annealed copper |
絶縁体 / Insulation | 105℃耐熱性ビニル混合物 / 105℃ heat resistant PVC |
より合わせ / Assembly | 線心を円形により合わせ / Circular |
テープ / Tape | テープ重ね巻き / Tape wrap arpund cores |
シールド / Shield | すずめっき軟銅線編組 / Tin coated annealed copper braid |
シース / Sheath | 耐油・耐熱性ビニル混合物(黒色)/ Oil and heat resistant PVC (black) |
線心識別 / Conductors identification
線心数 / No. of conductors | 線心識別方式 / Conductors identification |
12 心以下 / 12 or less | 絶縁体着色方式 Identification by color (黒、白、赤、緑、黄、茶、青、灰、橙、紫、桃、若草の順 in order of black, white, red, green, yellow, brown, blue, gray, orange, purple, pink and light green) |
13 心以上 / 13 or more | ナンバリング No. 方式 Identification by number (白色絶縁体表面に 1、2、3、4・・・を連続表示 marked on white insulation surface in order of 1, 2, 3, 4 and so on ) |
例示 / Example : KVC-36SB 12 × 0.5㎟ (20AWG)
構造表 / Construction table
導体 / Conductor | 絶縁 / Insulation | 心数 Number of conductors |
在庫 / Stocks | シールド付き / Shield | 電気特性 / Electrical characteristics | ||||
公称断面積 Nominal cross sectional area |
外径(約㎜) Diameter (Approx.㎜) 構成 〈Construction〉 |
外径(約㎜) Diameter (Approx.㎜) |
シールド付 Shield |
シース外径(約㎜) Sheath diameter (Approx.㎜) |
概算重量 Approx.weight (kg/ km) |
許容電流 Allowable ampacity (A) |
導体抵抗 Conductor resistance 20℃(Ω / ㎞) |
絶縁抵抗 Insulation resistance 20℃(M Ω㎞) |
|
0.1㎟ <28AWG> |
0.38 <7/0.127> |
0.88 | 2 (1P) | ○ | 3.6 | 18 | 3 | 231 以下 (Max 231) |
50 以上 (Min 50) |
3 | ○ | 3.7 | 20 | 3 | |||||
4 (2P) | ○ | 5.3 | 35 | 3 | |||||
5 (2P+1) | 5.5 | 35 | 3 | ||||||
6 (3P) | ○ | 5.6 | 40 | 2 | |||||
7 (3P+1) | 5.7 | 40 | 2 | ||||||
8 (4P) | ○ | 5.8 | 45 | 2 | |||||
10 (5P) | ○ | 6.2 | 50 | 2 | |||||
12 (6P) | 6.7 | 55 | 2 | ||||||
14 (7P) | 7.0 | 60 | 2 | ||||||
15 (7P+1) | 7.1 | 65 | 2 | ||||||
16 (8P) | ○ | 7.4 | 65 | 2 | |||||
20 (10P) | 8.1 | 75 | 2 | ||||||
24 (12P) | 8.7 | 90 | 1 | ||||||
30 (15P) | 9.3 | 105 | 1 | ||||||
36 (18P) | 10.0 | 120 | 1 | ||||||
40 (20P) | 10.5 | 130 | 1 | ||||||
50 (25P) | 11.5 | 150 | 1 | ||||||
60 (30P) | 12.5 | 175 | 1 | ||||||
64 (32P) | 12.5 | 180 | 1 | ||||||
0.2㎟ <25AWG> |
0.54 <7/0.18> |
1.05 | 2 (1P) | ○ | 3.9 | 21 | 5 | 113 以下 (Max 113) |
50 以上 (Min 50) |
3 | ○ | 4.1 | 24 | 4 | |||||
4 (2P) | ○ | 5.7 | 40 | 4 | |||||
5 (2P+1) | ○ | 5.8 | 45 | 4 | |||||
6 (3P) | ○ | 5.9 | 45 | 4 | |||||
7 (3P+1) | 6.0 | 50 | 3 | ||||||
8 (4P) | ○ | 6.4 | 55 | 3 | |||||
10 (5P) | ○ | 6.8 | 65 | 3 | |||||
12 (6P) | ○ | 7.5 | 75 | 3 | |||||
14 (7P) | ○ | 7.7 | 80 | 3 | |||||
15 (7P+1) | 7.8 | 80 | 3 | ||||||
16 (8P) | ○ | 8.2 | 90 | 3 | |||||
20 (10P) | ○ | 9.0 | 105 | 2 | |||||
24 (12P) | ○ | 9.1 | 115 | 2 | |||||
30 (15P) | ○ | 10.0 | 140 | 2 | |||||
36 (18P) | ○ | 11.0 | 160 | 2 | |||||
40 (20P) | ○ | 11.5 | 170 | 2 | |||||
50 (25P) | ○ | 12.5 | 205 | 2 | |||||
60 (30P) | 14.0 | 245 | 2 | ||||||
64 (32P) | ○ | 14.0 | 255 | 2 | |||||
0.3㎟ <23AWG> |
0.7 <12/0.18> |
1.3 | 2 (1P) | ○ | 4.6 | 28 | 7 | 62.3 以下 (Max 62.3) |
50 以上 (Min 50) |
3 | ○ | 4.8 | 35 | 6 | |||||
4 (2P) | ○ | 6.2 | 50 | 6 | |||||
5 (2P+1) | ○ | 6.4 | 55 | 5 | |||||
6 (3P) | ○ | 7.1 | 70 | 5 | |||||
7 (3P+1) | 7.2 | 70 | 5 | ||||||
8 (4P) | ○ | 7.8 | 85 | 5 | |||||
10 (5P) | ○ | 8.5 | 100 | 4 | |||||
12 (6P) | ○ | 9.3 | 115 | 4 | |||||
14 (7P) | ○ | 9.4 | 120 | 4 | |||||
15 (7P+1) | 9.5 | 125 | 4 | ||||||
16 (8P) | ○ | 10.0 | 135 | 4 | |||||
20 (10P) | ○ | 11.5 | 170 | 4 | |||||
24 (12P) | ○ | 12.0 | 185 | 3 | |||||
30 (15P) | ○ | 13.0 | 215 | 3 | |||||
36 (18P) | ○ | 14.0 | 255 | 3 | |||||
40 (20P) | ○ | 14.5 | 275 | 3 | |||||
50 (25P) | ○ | 15.5 | 335 | 3 | |||||
60 (30P) | ○ | 17.0 | 385 | 2 | |||||
64 (32P) | 17.5 | 405 | 2 | ||||||
0.5㎟ <20AWG> |
0.95 <22/0.18> |
1.65 | 2 | ○ | 5.6 | 45 | 10 | 34.3 以下 (Max 34.3) |
50 以上 (Min 50) |
3 | ○ | 5.9 | 50 | 9 | |||||
4 | ○ | 6.3 | 60 | 8 | |||||
5 | ○ | 7.0 | 80 | 7 | |||||
6 | ○ | 7.7 | 95 | 7 | |||||
7 | ○ | 7.7 | 100 | 7 | |||||
8 | ○ | 8.2 | 115 | 6 | |||||
10 | ○ | 9.3 | 140 | 6 | |||||
12 | ○ | 9.6 | 150 | 6 | |||||
14 | 10.0 | 165 | 5 | ||||||
15 | 10.5 | 175 | 5 | ||||||
16 | ○ | 10.5 | 190 | 5 | |||||
20 | ○ | 12.0 | 225 | 5 | |||||
24 | 11.5 | 265 | 5 | ||||||
25 | 13.0 | 275 | 4 | ||||||
26 | 13.0 | 280 | 4 | ||||||
30 | ○ | 13.5 | 310 | 4 | |||||
40 | ○ | 15.5 | 400 | 4 | |||||
50 | ○ | 17.0 | 490 | 4 | |||||
60 | 18.0 | 580 | 3 |
○は在庫品です。/ ○ : Stocks
許容電流について / Allowable ampacity
・許容電流値は周囲温度 30℃、空中 1 条敷設時の計算値を示し、保証値ではありません。
Allowable ampacity (A) for cable is based on calculation under aerial one-cable and temperature at 30℃ , not repressenting a guaranteed value.
・周囲温度 30℃以上の場合は、次の電流減少係数を表の値に乗じて下さい。
Allowable ampacity cable at ambient temperature abobe 30℃ is to be determined by multiplying the current value by the appropriate current reduction factorin
the following table1.
・許容電流の値は、JCS0168 により算出した値であって、保証値ではありません。
The allowable ampacity for cable are the calculated by JCS0168, but not guaranteed.
JCS0168…日本電線工業会規格 “33kV 以下電力ケーブルの許容電流計算”
“Calculation of the current rating of power cables for rated voltage up to and including 33kV”
表 電流減少係数 / Table1 Current reduction factors
周囲温度 / Ambient temperature (℃) | 30 | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 | 85 | 90 | 95 | 100 |
電流減少係数 / Current reduction factors | 1.00 | 0.97 | 0.93 | 0.89 | 0.86 | 0.82 | 0.77 | 0.73 | 0.68 | 0.63 | 0.58 | 0.52 | 0.45 | 0.36 | 0.26 |
