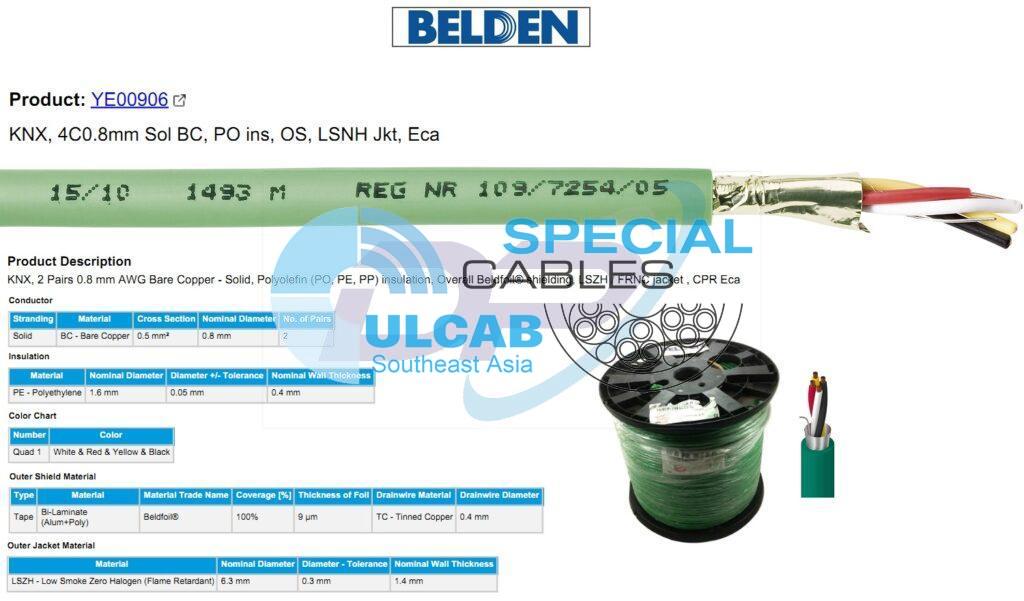

Product: YE00906
KNX, 4C0.8mm Sol BC, PO ins, OS, LSNH Jkt, Eca
KNX is an open standard (see EN 50090, ISO/IEC 14543) for commercial and domestic building automation. KNX devices can manage lighting, blinds and shutters, HVAC, security systems, energy management, audio video, white goods, displays, remote control, etc. KNX evolved from three earlier standards; the European Home Systems Protocol (EHS), BatiBUS, and the European Installation Bus (EIB or Instabus). It can use twisted pair (in a tree, line or star topology), powerline, RF, or IP links . On this network, the devices form distributed applications and tight interaction is possible. This is implemented via interworking models with standardised datapoint types and objects, modelling logical device channels.
Product Description
KNX, 2 Pairs 0.8 mm AWG Bare Copper – Solid, Polyolefin (PO, PE, PP) insulation, Overall Beldfoil® shielding, LSZH / FRNC jacket , CPR Eca
Technical Specifications
Product Overview
Suitable Applications: KNX, EIB cable for building management
Physical Characteristics (Overall)
Conductor
| Stranding | Material | Cross Section | Nominal Diameter | No. of Pairs |
| Solid | BC – Bare Copper | 0.5 mm² | 0.8 mm | 2 |
Conductor Count: 4
Insulation
| Material | Nominal Diameter | Diameter +/- Tolerance | Nominal Wall Thickness |
| PE – Polyethylene | 1.6 mm | 0.05 mm | 0.4 mm |
Color Chart
| Number | Color |
| Quad 1 | White & Red & Yellow & Black |
Outer Shield Material
| Type | Material | Material Trade Name | Coverage [%] | Thickness of Foil | Drainwire Material | Drainwire Diameter |
| Tape | Bi-Laminate (Alum+Poly) | Beldfoil® | 100% | 9 µm | TC – Tinned Copper | 0.4 mm |
Outer Jacket Material
| Material | Nominal Diameter | Diameter – Tolerance | Nominal Wall Thickness |
| LSZH – Low Smoke Zero Halogen (Flame Retardant) | 6.3 mm | 0.3 mm | 1.4 mm |
Construction and Dimensions
Cabling
| Description |
| 1 quad covered with a polyester foil |
Electrical Characteristics
Conductor DCR
| Max. Conductor DCR |
| 37.5 Ohm/km |
Capacitance
| Nom. Capacitance Conductor to Conductor |
| 50 pF/m |
Voltage
| Voltage Rating [V] |
| 300 V |
Electrical Characteristics Notes: Testvoltage 4 kV, 1 min
Temperature Range
Storage Temp Range: -30°C to +70°C
Operating Temp Range: -20°C To +70°C
Mechanical Characteristics
Min. Bend Radius During Installation: 31.5 mm
Min Setting Radius: 63 mm
Standards
CPR Euroclass: Eca
Other Specification: KNX REG 109/7254/05
Applicable Environmental and Other Programs
Environmental Space: Indoor – Euroclass Eca
Flammability, LS0H, Toxicity Testing
IEC Flammability: IEC 60332-1-2
IEC 60754-1 (EN50267-1)- Halogen Amount: Zero
IEC 60754-2 – Halogen Acid Gas Amount – Max. Conductivity: 2.5 µS/mm
IEC 60754-2 – Halogen Acid Gas Amount – Min. pH: 4.3
Part Number
Variants
| Item # | Color | Put-Up Type | Length | EAN |
| YE00906.00100 | Green | Reel | 100 m | 8719605112835 |
| YE00906=00100 | Green | Reel | 100 m | 8719605162625 |
| YE00906.00500 | Green | Reel | 500 m | 8719605112859 |
| YE00906=00500 | Green | Reel | 500 m | 8719605161390 |
| YE00906.001000 | Green | Reel | 1,000 m | 8719605112842 |
| YE00906=001000 | Green | Reel | 1,000 m | 8719605161383 |
| YE00906=K01000 | Green | Reel | 1,000 m | 8719605161376 |
History
Update and Revision: Revision Number: 0.168 Revision Date: 07-30-2021
