Category 7 & 7A Cable

S/FTP Cat.7A

This specification is based on the standards of IEC 61156-5, IEC 60332-1, IEC 60332-3,
IEC 61034 & IEC 60754 and covers the requirements for overall core copper braid shielded and
each individual pair foiled twisted pair (S/FTP) cables of 100Ω, Category 7A (Cat.7A, Class FA).
– Applicable cable size & type ; 4 Pairs, PVC or LSZH sheath

Description

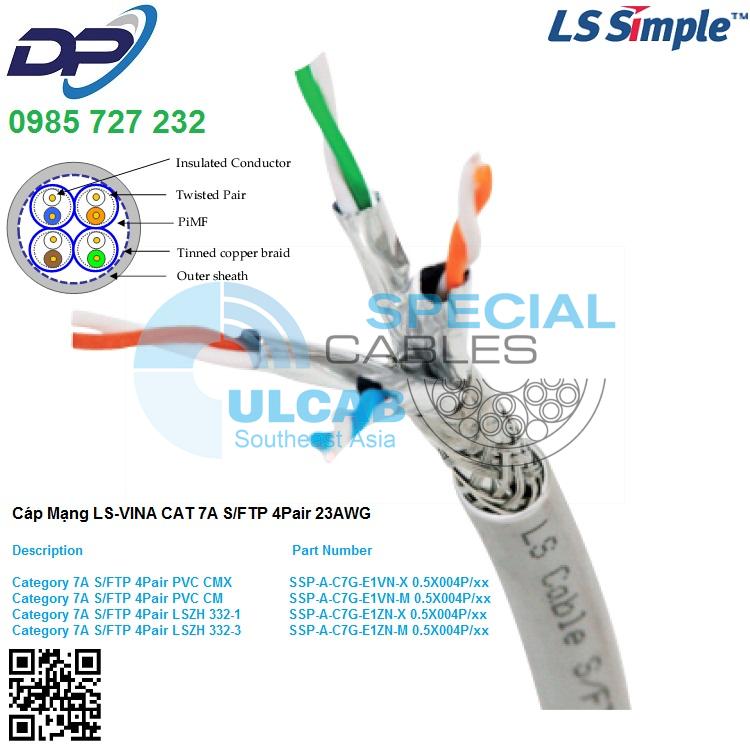

LS Simple™ S/FTP, overall screened and foil shielded twisted pair(PiMF), Category 7A cable is adequate for data center system & special application such as offshore or marine telecommunication environment.
It’s capable of 10Gbps above transmission rate up to 1GHz and handling full broadband & baseband video signals. Basically this cable meets the international standard (ISO/IEC 11801, IEC 61156-5 etc.) and has the sufficient immunity for EMI noise and attenuation performance.
Part Lists
Description Part Number
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/WH
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/WH
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/WH
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/WH
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/BL
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/BL
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/BL
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/BL
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/GY
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/GY
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/GY
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/GY
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/GN
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/GN
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/GN
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/GN
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/VI
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/VI
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/VI
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/VI
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/OR
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/OR
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/OR
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/OR
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/RD
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/RD
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/RD
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/RD
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/YL
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/YL
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/YL
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/YL
Category 7A S/FTP 4Pair PVC CMX SSP-A-C7G-E1VN-X 0.5X004P/BK
Category 7A S/FTP 4Pair PVC CM SSP-A-C7G-E1VN-M 0.5X004P/BK
Category 7A S/FTP 4Pair LSZH 332-1 SSP-A-C7G-E1ZN-X 0.5X004P/BK
Category 7A S/FTP 4Pair LSZH 332-3 SSP-A-C7G-E1ZN-M 0.5X004P/BK
Application
. Data Center System
. Horizontal Distribution & Backbone Cabling
. 4/16Mbps Token Ring (IEEE 802.5)
. 10/100/1000/10G BASE-T (IEEE 802.3)
. 155 Mbps ATM
. 100 Mbps TP-PMD
. ISDN, ADSL
. ATM LAN 1.2G
Electrical Performance
Characteristics units Specification
DC Resistance Ω/100m ≤ 9.5
DC Resistance Unbalance % ≤ 2.00
Capacitance Unbalance

(Pair to Ground)

pF/km

(800~1000Hz)

≤ 1600
Insulation Resistance MΩ·m ≥ 5000
Dielectric Strength DC kV/sec 2.5 / 2
Impedance

(Characteristic mean)

Ω 100 ± 5%  (at 100MHz)
Return Loss dB/100m ≥ 20 + 5 * log(freq)      , 4     ≤  f <   10MHz

≥ 25                          , 10   ≤  f <  20MHz

≥ 25 – 7 * log(freq/20)  , 20   ≤  f< 600MHz (min. 17.3dB)

≥17.3 – 10*log(f/600)    , 600  ≤  f ≤  1000MHz

Attenuation

(Insertion Loss)

dB/100m ≤ 1.8*√(freq) + 0.005*(freq) + 0.25/√(freq)

, 4 ~ 1000 MHz

NEXT dB/100m ≥ 105.4 – 15*log(freq), Max. 78dB, 4~1000MHz
Power sum NEXT dB/100m ≥ 102.4 – 15*log(freq), Max. 75dB, 4~1000MHz
ACRF dB/100m ≥ 95.3–20*log(freq), Max. 78dB, 4~1000MHz
Power sum ACRF dB/100m ≥ 92.3–20*log(freq), Max. 75dB, 4~1000MHz
Propagation Delay ns/100m ≤ 534 + 36 / √ (freq), 4~1000MHz
Propagation Delay Skew ns/100m ≤ 25, 4~1000MHz
Freq.

(MHz)

RL

(dB/100m)

Min.

Att.

(dB/100m)

Max.

NEXT

(dB/100m)

Min.

PSNEXT

(dB/100m)

Min.

ACRF

(dB/100m)

Min.

PSACRF

(dB/100m)

Min.

P.Delay

(ns/100m)

Max.

4 23.0 3.75 78.0 75.0 78.0 75.0 552
8 24.5 5.22 78.0 75.0 77.2 74.2 547
10 25.0 5.82 78.0 75.0 75.3 72.3 545
16 25.0 7.34 78.0 75.0 71.2 68.2 543
20 25.0 8.21 78.0 75.0 69.3 66.3 542
25 24.3 9.18 78.0 75.0 67.3 64.3 541
31.25 23.6 10.26 78.0 75.0 65.4 62.4 540
62.5 21.5 14.57 78.0 75.0 59.4 56.4 539
100 20.1 18.53 75.4 72.4 55.3 52.3 538
200 18.0 26.47 70.9 67.9 49.3 46.3 537
400 17.3 38.01 66.4 63.4 43.3 40.3 536
600 17.3 47.10 63.7 60.7 39.7 36.7 535
800 16.1 54.92 61.9 58.9 37.2 34.2 535
1000 15.1 61.93 60.4 57.4 35.3 32.3 535

DATA SHEET
