Connectivity

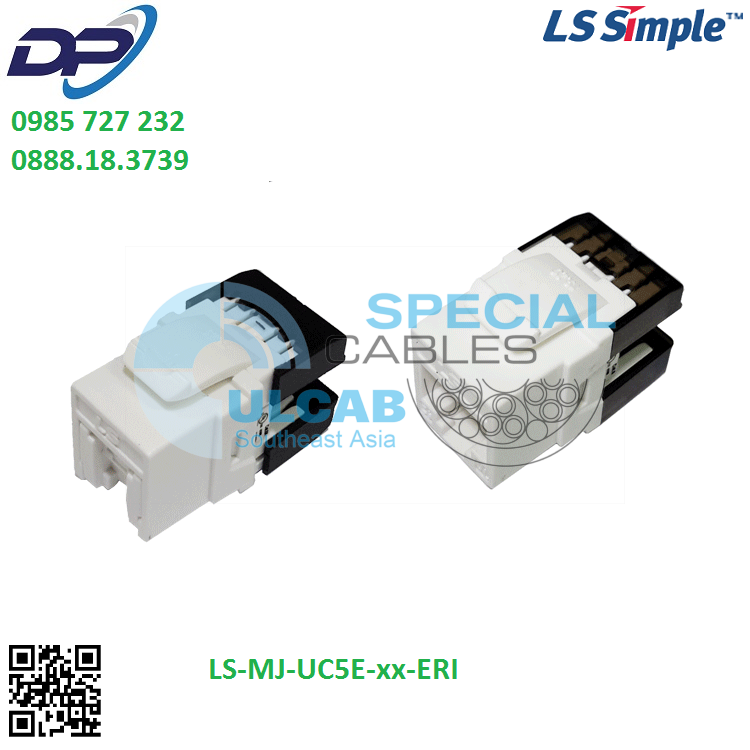

Unshielded ERI Cat.5e Slim
Description
•User instructions and basic wiring layout
for standard configuration are included
• 180 degree slim Modular Jack
• Designed and manufactured to meet demanding of international standards
• Individually terminated using slim-IDC(Insulation Displacement Connectors)
• T568A or T568B configuration
• 47 CFR part 68(RJ-45), ANSI/TIA-568-C.2(Category 5e) and ISO/IEC 11801 compliant
• High impact flame retardant plastic housing
• Easy installation & smart cabling arrangement by wiring cap
• RoHS compliant
Application
- Horizontal Distribution & Backbone Cabling
- 4/16 Mbps Token Ring (IEEE 802.5)
- 10/100/1000 BASE-T (IEEE 802.3)
- ATM 155.52 Mbps
- 100Mbps TP-PMD
- ISDN, ADSL
- Analog & digital voice(VoIP) and video
- Full broadband and baseband video
Part Numbers
| Part Numbers | Description | Dimension (H x W, inch) |
Compatible Items |
| LS-MJ-UC5E-WH-ERI | Unshielded Category 5e Modular Jack White color |
19.3 * 16.8 * 29.0 | Panel : LS-PP-24P(48P)-E-WM LS-PPP-UC-24P-E4-C (Plate type) LS-APP-UC-24P-E4-C (Angled type) Outlet : LS-FP-SA(SF)(US) series Tool : LS-EZT-TOOL-ER |
| LS-MJ-UC5E-BK-ERI | Unshielded Category 5e Modular Jack black color |
19.3 * 16.8 * 29.0 | |
| LS-MJ-UC5E-BL-ERI | Unshielded Category 5e Modular Jack blue color |
19.3 * 16.8 * 29.0 | |
| LS-MJ-UC5E-RD-ERI | Unshielded Category 5e Modular Jack red color |
19.3 * 16.8 * 29.0 | |
| LS-MJ-UC5E-GN-ERI | Unshielded Category 5e Modular Jack green color |
19.3 * 16.8 * 29.0 | |
| LS-MJ-UC5E-YL-ERI | Unshielded Category 5e Modular Jack yellow color |
19.3 * 16.8 * 29.0 |
Technical Details
| Item | Unit | Information |
| FEATURE | ||
| Approvals | UL Listed | |
| Category | ANSI/TIA-568-C.2 Category 5e | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation | Mega‐ohm | > 500 |
| Resistance | milli‐ohm | < 20 |
| Contact Resistance | ohm | < 0.1 |
| DC Resistance | VAC | < 150 |
| Voltage | ||
| MECHANICAL | Mating | 750 |
| Insertion Life | cycles | 20(89) |
| Pull Force | lbs(N) | ‐40 ~ 68 |
| Temperature | ℃ | 10 ~ 90 |
| Humidity | % (RH) | |
| IDC accept | AWG | 23~26 (Solid wire) |
| PHYSICAL | Polycarbonate (PC resin), UL 94V-2 rated, Transparent Black | |
| Cap | ||
| Housing | Acrylonitrile Butadiene Styrene (ABS resin) + Polycarbonate (PC resin) | |
| Jack Contacts | UL94V-0 rated Phosphor bronze flat wire, plated with 1.27um (50uin) | |
| Contact Bracket | thick hard gold on contact area over nickel underplate | |
| PCB | Polycarbonate (PC resin), UL94V-2 rated | |
| IDC Terminals | FR4, UL94V-0 rated | |
| IDC Block | Phosphor Bronze, plated with tin over nickel underplate Polycarbonate (PC resin) + Glass Fiber, UL94V-2 rated |
|
