Hạt Mạng LS-VINA ( LS-MP-SC5E-RJ45-TRBOOT ) Đầu cắm chuẩn RJ45 dành cho cáp FTP CAT5e (sử dụng cho cả lõi nhiều sợi và lõi đặc),có mạ một lớp vàng dày 50 micro-inch có kèm Boot trong suốt
Description
LS Simple
Shielded Category 5e or Category 6 Modular Plug has8-pin connection and complies with RJ45 plug specification of FCC CFR 47part 68. and it include the cable guide and transparent boot for reliability of connection & assembly.
Application
• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps
• 100Mbps TP-PMD
• ISDN, ADSL
• Analog & Digital voice(VoIP) and video
• Full broadband and baseband video
• RoHS compliant
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Certified | |
| Category | ANSI/TIA-568-C.2 Category5e | |
| Wiring scheme | FCC CFR 47 part 68 and IEC 603-7 | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| Dielectric Strength | VAC (RMS) | 1000 |
| Rated Voltage, Current | VAC max | < 30VAC at1.5A |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20(89) |
| Temperature | ℃ | ‐20 ~ 68 |
| Humidity | % (RH) | 10 ~ 90 |
| Contact Accept | AWG | 0.41mm(26AWG) ~ 0.51mm(24AWG) |
| PHYSICAL | ||
| Insert & Plug Housing | High-impact Polycarbonate (PC), UL 94V-2 rated | |
| Contact Blade | Phosphor bronze plated with 50uin thick gold over nickel undercoat |
|
| Boot | Polyvinyl Chloride (PVC), Transparent |
Part Numbers
| Description | Dimension (H x W x D, mm) |
Part Number |
| 8P8C RJ45 Shielded Cat.5e Modular Plug with transparent boot |
8.3 x 11.7 x 21.5 | LS-MP-SC5E-RJ45-TRBOOT |
Drawing

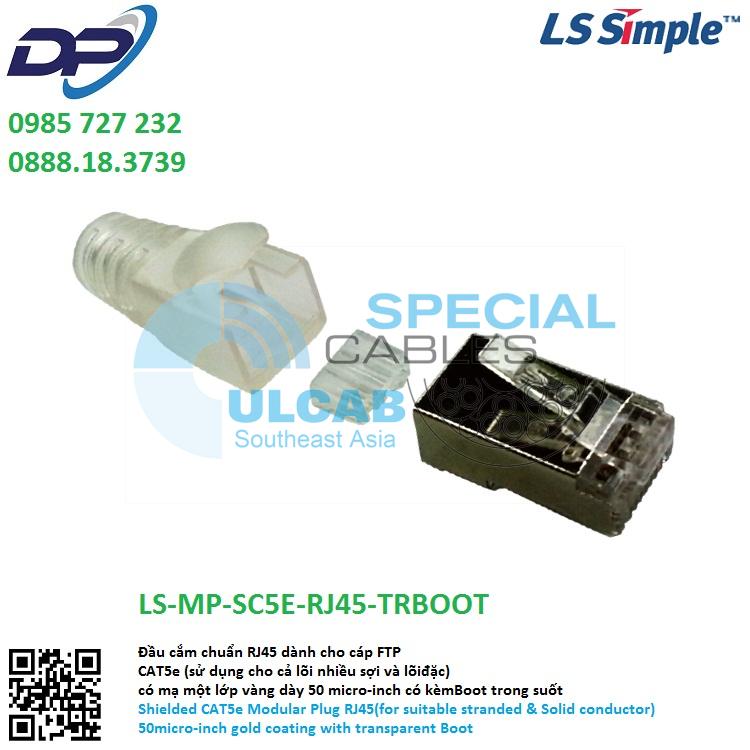

LS-MP-SC5E-RJ45-TRBOOT
Đầu cắm chuẩn RJ45 dành cho cáp FTP
CAT5e (sử dụng cho cả lõi nhiều sợi và lõi đặc),có mạ một lớp vàng dày 50 micro-inch có kèm Boot trong suốt
Shielded CAT5e Modular Plug RJ45(for suitable stranded & Solid conductor),50micro-inch gold coating with transparent Boot
DATA SHEET
