Hạt Mạng LS-VINA ( LS-MP-SC6-RJ45-TRBOOT-A ) Đầu cắm chuẩn RJ45 dành cho cáp FTP CAT6 (sử dụng cho cả lõi nhiều sợi và lõi đặc),có mạ một lớp vàng dày 50 micro-inch có kèm Boot trong suốt
Description
LS Simple
Shielded Category 6 above modular plug has 8P8C connection and complies with RJ45 plug specification of FCC CFR 47 part 68.And it include the cable guide and transparent boot for reliability of connection & assembly.
Application
• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000/10G BASE-T (IEEE 802.3)
• 155 Mbps ATM
• 100Mbps TP-PMD
• ISDN, ADSL
• Analog & Digital voice (VoIP) and video
• Full broadband and baseband video
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Certified | |
| Category | ANSI/TIA-568-C.2 (Category 6 or 6A) | |
| Meet | FCC CFR 47 Part 68 and IEC 60603-7 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| Dielectric Strength | VAC (RMS) | 1000 |
| Rated Voltage, Current | VAC max | < 30 at 1.5A |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20 (89) |
| Temperature | ℃ | ‐20 ~ 68 |
| Humidity | % (RH) | 10 ~ 90 |
| IDC Contact Accept | mm | 0.41mm(26AWG) ~ 0.51(24AWG) |
| Insulation Diameters | mm | 1.05mm ~ 1.15mm |
| Cable Diameters | mm | 5mm ~ 7.8mm |
| PHYSICAL | ||
| Plug Housing | High-impact Polycarbonate (PC), UL 94V-0 rated transparent |
|
| Contact Blade | Copper Alloy, plated with 1.27um (50uin) thick hard gold over nickel underplate in contact area |
|
| Overall Shield | Copper Alloy | |
| Boot | Polyvinyl Chloride (PVC), Transparent UL 94 V-0 rated |
Part Numbers
| Description | Part Number |
| Category 6 above Shielded RJ45 Modular Plug with Transparent Boot (applicable cable diameter : nom. 7.5mm) |
LS-MP-SC6-RJ45-TRBOOT-A |
Drawing

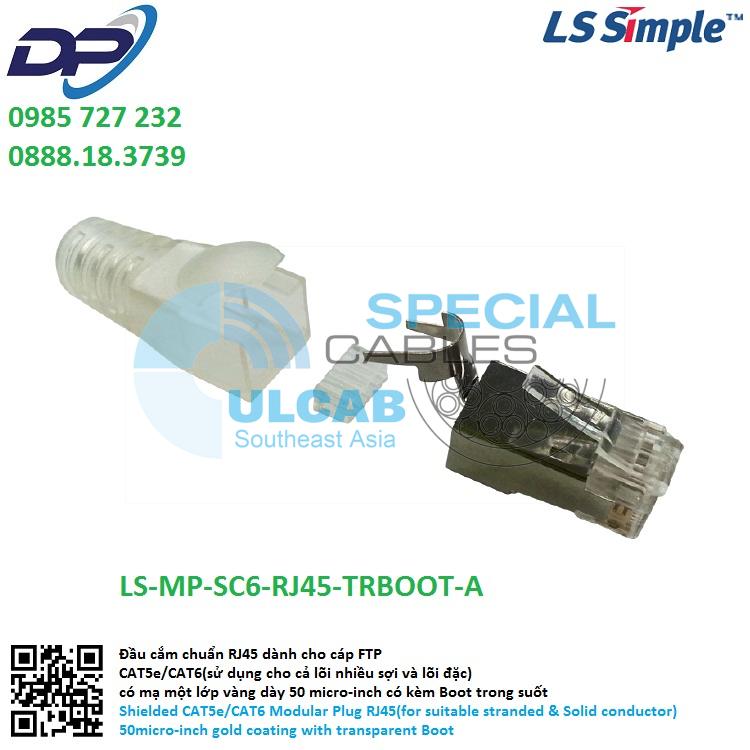

LS-MP-SC6-RJ45-TRBOOT-A
Đầu cắm chuẩn RJ45 dành cho cáp FTP
CAT5e/CAT6(sử dụng cho cả lõi nhiều sợi và lõi
đặc),có mạ một lớp vàng dày 50 micro-inch có kèm
Boot trong suốt
Shielded CAT5e/CAT6 Modular Plug RJ45(for
suitable stranded & Solid conductor),50micro-inch
gold coating with transparent Boot
DATA SHEET
