Thanh Đấu Nối LS-VINA ( LS-PP-UC6A-24P-WM-ERI ) CAT6A, 24 cổng dạng IDC nhỏ gọn,có thanh quản lý cáp,UL Listed và RoHS
Description
LS Simple™ Unshielded Category 6A Patch Panel
• User instructions and basic wiring layout for standard configuration are included
• Improved Category 6A Modular Jack about crosstalk noise
• With cable management, accessories and full installation instructions
• T568A or T568B configuration
• Individually terminated using slim-IDC (Insulation Displacement Connectors)
• Modular type 180-degree Slim Modular Jack
• 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2 (Category 6) and ISO/IEC 11801 compliant
• High impact flame retardant plastic housing
• RoHS compliant
Application
• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000/1G BASE-T (IEEE 802.3)
• 155 Mbps
• ATM LAN 1.2Gbit/s
•100Mbps TP-PMD
• ISDN, ADSL
• Analog & digital voice(VoIP) and video
• Full broadband and baseband video
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Listed | |
| Category | ANSI/TIA-568-C.2 Category 6A | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| DC Resistance | ohm | < 0.1 |
| Voltage | VAC | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20(89) |
| Temperature | ℃ | ‐40 ~ 68 |
| Humidity | % | 10 ~ 90 |
| IDC accept | AWG | 22~26 (Solid wire) |
| PHYSICAL | ||
| Cap & Housing | High impact flame retardant plastic, UL 94V-0 | |
| Spring Wire | Phosphor bronze plated with 50μin thick gold over nickel undercoat | |
| IDC Plastic | Polycarbonate, UL 94V-0 rated | |
| IDC Contact | Phosphor bronze plated with minimum 100μin thick tin |
Part Numbers
| Description | Dimension (H x W, inch) |
Part Number | Compatible Items |
| Slim-Body Category 6A Unshielded Patch Panel 180-degree IDC |
1.75 x 19 | LS-PP-UC6A-24P-WM-ERI | Rack : 19-inch standard rack Tool: LS-EZT-TOOL-ER LS-STOOL, LS-TOOL-MJ |
Drawing

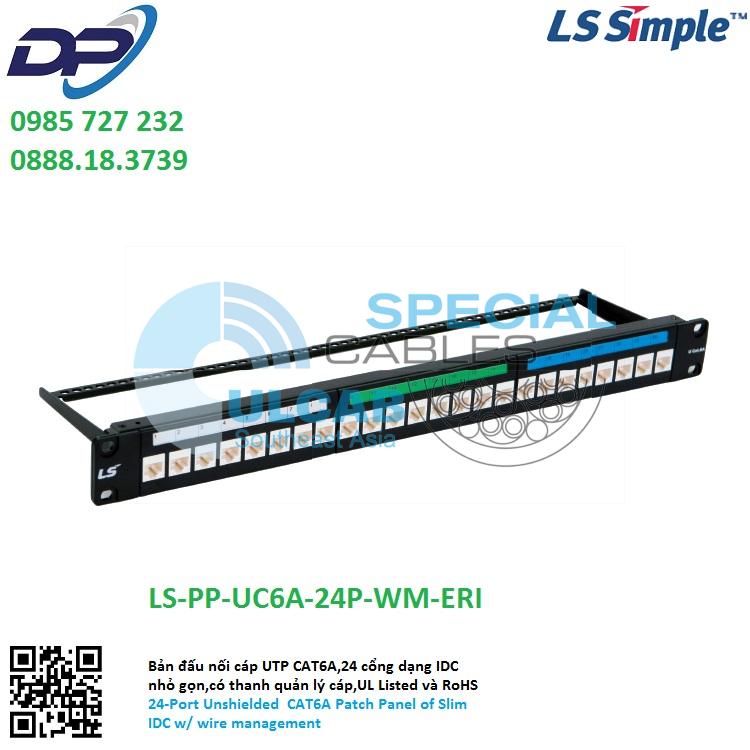

LS-PP-UC6A-24P-WM-ERI
Bản đấu nối cáp UTP CAT6A,24 cổng dạng IDC
nhỏ gọn,có thanh quản lý cáp,UL Listed và RoHS
24-Port Unshielded CAT6A Patch Panel of Slim
IDC w/ wire management
DATA SHEET
