Nhân Mạng LS-VINA ( LS-MJ-UC6A-WH-ERI ) Đầu nối cáp UTP CAT6A,180o,loại ERI, Mầu White
Description
• User instructions and basic wiring layout for standard configuration are included
• 180 degree slim Modular Jack
• Designed and manufactured to meet demanding of international standards
• Individually terminated using slim-IDC(Insulation Displacement Connectors)
• T568A or T568B configuration
• 47 CFR part 68(RJ-45), ANSI/TIA-568-C.2(Category 6A) and ISO/IEC 11801 compliant
• High impact flame retardant plastic housing
• Easy installation & smart cabling arrangement by wiring cap
• RoHS compliant
Application
• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• ATM 155.52 Mbps
• 10GBAST-T(IEEE 802.3)
•100Mbps TP-PMD
• ISDN, ADSL
• Analog & digital voice(VoIP) and video
• Full broadband and baseband video
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Listed | |
| Category | ANSI/TIA-568-C.2 Category 6A | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation | Mega‐ohm | > 500 |
| Resistance | milli‐ohm | < 20 |
| Contact Resistance | ohm | < 0.1 |
| DC Resistance | VAC | < 150 |
| Voltage | ||
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20(89) |
| Temperature | ℃ | ‐40 ~ 68 |
| Humidity | % | 10 ~ 90 |
| IDC accept | AWG | 23~26 (Solid wire) |
| PHYSICAL | ||
| Cap | Polyamide (PA resin)+Glass Fiber, UL 94V-0 rated, Black |
|
| Housing | Acrylonitrile Butadiene Styrene (ABS resin) + Polycarbonate (PC resin) |
|
| Jack Contacts | UL94V-0 rated | |
| Contact Bracket | Phosphor bronze flat wire, plated with 1.27um (50uin) thick hard gold on contact area over nickel underplate Polycarbonate (PC resin), UL94V-2 rated |
|
| PCB | FR4, UL94V-0 rated | |
| IDC Terminals | Phosphor Bronze, plated with tin over nickel underplate | |
| IDC Block | Polycarbonate (PC resin) + Glass Fiber, UL94V-2 rated |

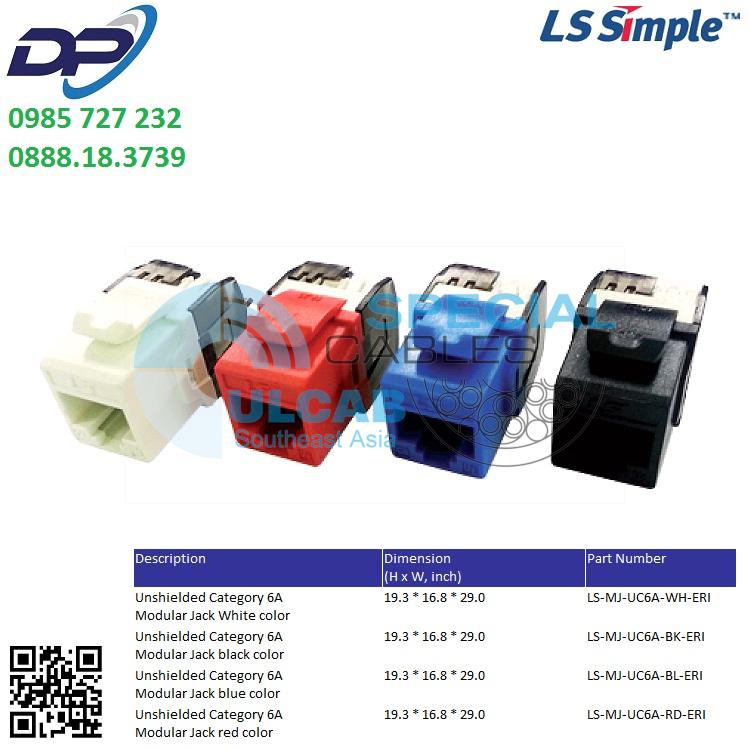

Part Numbers
| Description | Dimension (H x W, inch) |
Part Number | Compatible Items |
| Unshielded Category 6A Modular Jack White color |
19.3 * 16.8 * 29.0 | LS-MJ-UC6A-WH-ERI | Panel : LS-PP series LS-APP series LS-PPP series Outlet : LS-FP-SA(SF)(US) series Tool : LS-EZT-TOOL-ER |
| Unshielded Category 6A Modular Jack black color |
19.3 * 16.8 * 29.0 | LS-MJ-UC6A-BK-ERI | |
| Unshielded Category 6A Modular Jack blue color |
19.3 * 16.8 * 29.0 | LS-MJ-UC6A-BL-ERI | |
| Unshielded Category 6A Modular Jack red color |
19.3 * 16.8 * 29.0 | LS-MJ-UC6A-RD-ERI |
Drawing
LS-MJ-UC6A-xx-ERI
Đầu nối cáp UTP CAT6A,180o,loại ERI,xx
180o Unshielded CAT6A Modular Jack,ERI type,xx
DATA SHEET
