Nhân Mạng LS-VINA ( LS‐MJ‐SC6A‐ERI ) 180 độ Shielded CAT6A Modular Jack,ERI type | Chống Nhiễu
Description
LS Simple™ Shielded Modular Jack
•User instructions and basic wiring layout for standard configuration are included
•180 degree Enhanced Rear IDC type Modular Jack
•Designed and manufactured to meet demanding of international standards
•Individually terminated using slim‐IDC(Insulation Displacement Connectors)
•T568A or T568B configuration
•47 CFR part 68(RJ‐45), ANSI/TIA‐568‐C.2(Category 6A) and ISO/IEC 11801 compliant
•High impact flame retardant plastic housing
•Easy installation & smart cabling arrangement by wiring cap
•UL Listed & RoHS compliant
Application
•Horizontal Distribution & Backbone Cabling
•4/16 Mbps Token Ring (IEEE 802.5)
•10/100/1000/10G BASE‐T (IEEE 802.3)
•155 Mbps
•ATM LAN 1.2G
•100Mbps TP‐PMD
•ISDN, ADSL
•Analog & digital voice(VoIP) and video
•Full broadband and baseband video
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Certified | UL Listed | |
| Category | ANSI/TIA‐568‐C.2 Category 6A | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| DC Resistance | ohm | < 0.1 |
| Voltage | VAC | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20(89) |
| Temperature | ℃ | ‐40~68 |
| Humidity | % | 10~90 |
| IDC accept | AWG | 23~26 (Solid wire) |
| PHYSICAL | ||
| Housing | Zinc die‐casting, plated with nickel | |
| Cap | Polycarbonate (PC resin), UL94V‐2 rated, Transparent Black | |
| Jack Contacts | Phosphor bronze flat wire, plated with 1.27um (50uin) Thick hard gold on contact area over nickel underplate |
|
| Contact Bracket | Polycarbonate (PC resin), UL94V‐2 rated | |
| Grounding Clip | Stainless steel | |
| Groundling Holder | Acrylonitrile Butadiene Styrene (ABS resin), UL94V‐2 | |
| PCB | FR4, UL94V‐0 rated | |
| IDC Terminals | Phosphor Bronze, plated with tin over nickel underplate | |
| IDC Block | Polycarbonate (PC rein) + Glass Fiber, UL94V‐2 rated, White |
Part Numbers
| Description | Dimension (H x W, inch) |
Part Number | Compatible Items |
| Shielded Category 6A Modular Jack |
19.5 * 16.4 * 36.2 | LS‐MJ‐SC6A‐ERI | Panel : LS‐PP‐24P(48P)‐E‐WM LS‐PPP‐SC‐24P‐E4‐C (Plate type) LS‐APP‐SC‐24P‐E4‐C (Angled type) Outlet : LS‐FP‐SA(SU)(SF)(US) series Tool : LS‐EZT‐TOOL‐ER |
Drawings

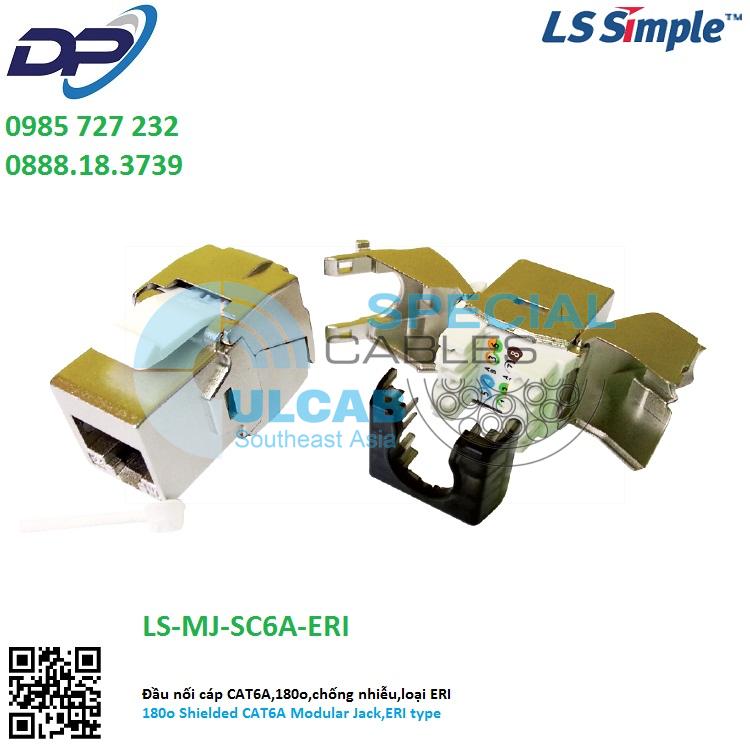

LS‐MJ‐SC6A‐ERI
Đầu nối cáp CAT6A,180 độ,chống nhiễu,loại ERI
180 độ Shielded CAT6A Modular Jack,ERI type
DATA SHEET
