Nhân Mạng LS-VINA ( LS-MJ-UC6-BK-ERI ) CAT6, 180 độ, có mã màu T568A/B, dạng ERI, Mầu Black
Description
LS Simple™ Unshielded Modular Jack
• User instructions and basic wiring layout for standard configuration are included
• 180-degree slim Modular Jack
• Designed and manufactured to meet demanding of international standards.
• Individually terminated using slim-IDC (Insulation Displacement Connectors)
• T568A or T568B configuration
• 47 CFR part 68(RJ-45), ANSI/TIA-568-C.2(Category 6) and ISO/IEC 11801 compliant
• RoHS compliant
• High impact flame retardant plastic housing
• Easy installation & smart cabling arrangement by wiring cap
Application
• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps
• ATM LAN 1.2G
• 100Mbps TP-PMD
• ISDN, ADSL
• Analog & digital voice(VoIP) and video
• Full broadband and baseband video
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Listed | |
| Category | ANSI/TIA-568-C.2 Category 6 | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| DC Resistance | ohm | < 0.1 |
| Voltage | VAC | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20(89) |
| Temperature | ℃ | ‐40 ~ 68 |
| Humidity | % | 10 ~ 90 |
| IDC accept | AWG | 23~26 (Solid wire) |
| PHYSICAL | ||
| Cap | Polycarbonate (PC resin), UL 94V-2 rated, Transparent Black | |
| Housing | Acrylonitrile Butadiene Styrene (ABS resin) + Polycarbonate (PC resin) UL94V-0 rated |
|
| Jack Contacts | Phosphor bronze flat wire, plated with 1.27um (50uin) thick hard gold on contact area over nickel underplate |
|
| Contact Bracket | Polycarbonate (PC resin), UL94V-2 rated | |
| PCB | FR4, UL94V-0 rated | |
| IDC Terminals | Phosphor Bronze, plated with tin over nickel underplate | |
| IDC Block | Polycarbonate (PC resin) + Glass Fiber, UL94V-2 rated |

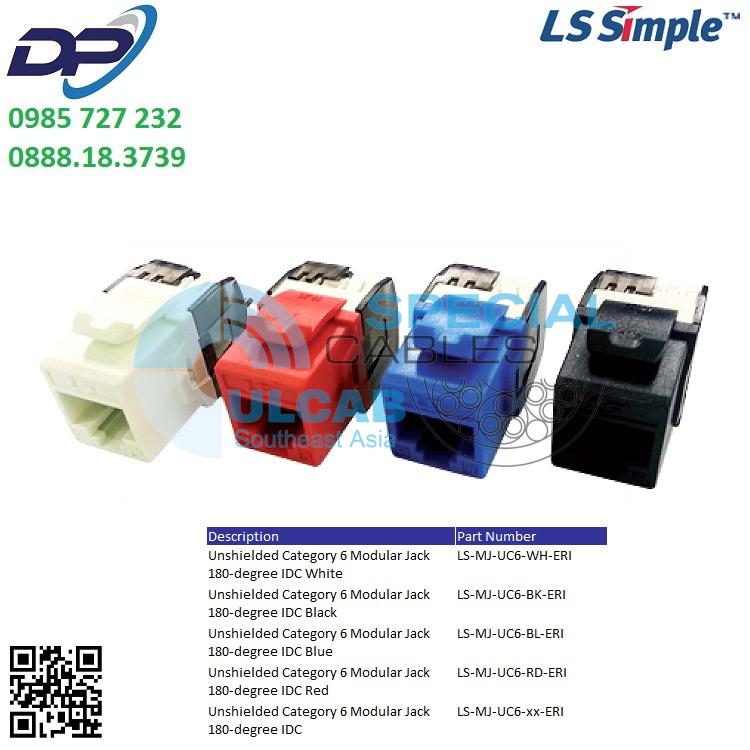

Part Numbers
| Description | Dimension (H x W x D, mm) |
Part Number | Compatible Items |
| Unshielded Category 6 Modular Jack 180-degree IDC White | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-WH-ERI | Panel : LS Empty Panel series Outlet : LS-FP-SA(SF)(SU)(US) series Tool : LS-EZT-TOOL-ER |
| Unshielded Category 6 Modular Jack 180-degree IDC Black | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-BK-ERI | |
| Unshielded Category 6 Modular Jack 180-degree IDC Blue | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-BL-ERI | |
| Unshielded Category 6 Modular Jack 180-degree IDC Red | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-RD-ERI | |
| Unshielded Category 6 Modular Jack 180-degree IDC | 19.3 * 16.8 * 29.0 | LS-MJ-UC6-xx-ERI |
Drawing
LS-MJ-UC6-xx-ERI
Đầu nối cáp UTP CAT6,180o,có mã màu
T568A/B,dạng ERI,xx
180o Unshielded CAT6 Modular Jack w/ T568A/B
Label,ERI type,xx
DATA SHEET
