Nhân Mạng LS-VINA ( LS-MJ-SC6-RIDC ) 180o Shielded CAT6 Modular Jack w/ T568A/B Label
Description
LS Simple™ Category 6 Shielded Modular Jack(RIDC)
• User instructions and basic wiring layout for standard configuration are included
• Designed and manufactured to meet demanding of international standards
• Individually terminated using slim-IDC (Insulation Displacement Connectors)
• T568A or T568B configuration
• 47 CFR part 68 (RJ-45), ANSI/TIA-568-C.2 (Category 6) and ISO/IEC 11801 compliant
• RoHS compliant
• High impact flame retardant plastic housing
• Easy & fast installation by using EZT(Easy Termination) Tool
Application
• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps
• ATM LAN 1.2G
• 100Mbps TP-PMD
• ISDN, ADSL
• Analog & digital voice(VoIP) and video
• Full broadband and baseband video
Technical Details
| Item | Unit | Information |
| FEATURE | ||
| Approvals | UL Listed | |
| Category | ANSI/TIA-568-C.2 Category 6 | |
| Meet | 47 CFR part 68 | |
| Wiring scheme | T568A/T568B | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| DC Resistance | ohm | < 0.1 |
| Voltage | VAC | < 150 |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20 (89) |
| Temperature | ℃ | ‐10 ~ 60 |
| Humidity | % (RH) | 10 ~ 90 |
| IDC accept | AWG | 22~26 (Solid wire) |
| PHYSICAL | ||
| Cap & Housing | High impact flame retardant plastic, UL 94V-0 | |
| Spring Wire | Phosphor bronze plated with 50μin thick gold over 100μin thick nickel undercoat |
|
| IDC Plastic | Polycarbonate, UL 94V-0 rated | |
| IDC Contact | Phosphor bronze plated with minimum 100μin thick tin |
Part Numbers
| Description | Dimension (H x W x D, mm) |
Part Numbers | Compatible Items |
| Slim-Body Category 6 Shielded Modular Jack 180 degree IDC |
19.2 * 14.6 * 30.1 | LS-MJ-SC6-RIDC | Patch Panel : LS-PP-24P(48P)-E series Outlet : LS-FP-SA(SF)(US) series Tool : LS-EZT-TOOL-FR |

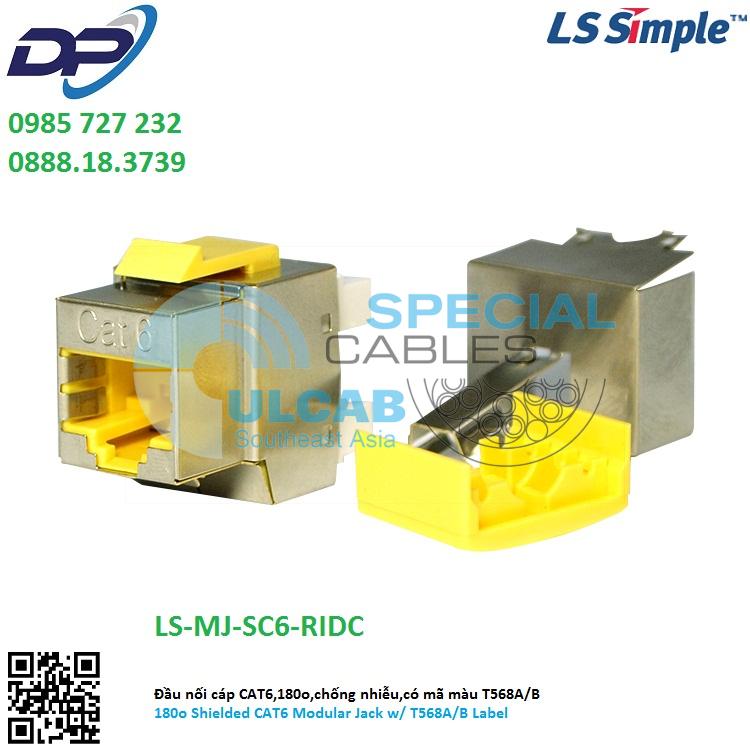

Drawing
LS-MJ-SC6-RIDC
Đầu nối cáp CAT6,180o,chống nhiễu,có mã màu
T568A/B
180o Shielded CAT6 Modular Jack w/ T568A/B
Label
DATA SHEET
