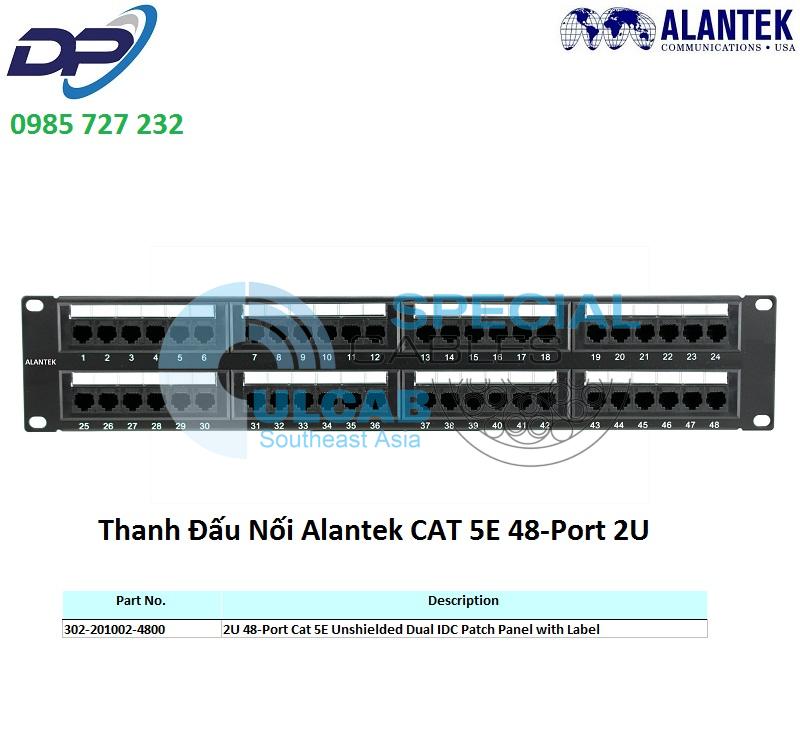

Thanh Đấu Nối Alantek ( 302-201002-4800 ) Patch Panel Cat 5E 48-Port 2U Unshielded Dual IDC with Label
Cat 5E Unshielded Dual IDC Patch Panel
Features
• Dual IDC allows both 110 and Krone tools to be used for termination
• Comes with front labels
• Support both T568A and T568B wiring
• Support Gigabit Ethernet application
Characteristics
• Current Rating: 1.5 amp (max.)
• Voltage Rating: 150 V
• Contact Resistance: 20 m-Ω
• Insulation Resistance: 500 m-Ω
• Dielectric Withstand Voltage: 1000 V AC
• RMS, 60 Hz 1 min
• IDC Termination: Dual (110 & Krone)
• Housing: PC UL94V-0
• IDC: PC UL94V-0, accept 22-26 AWG Solid Wire
• PCB: FR4 1.6mm (0.4”) thickness, 2 layers
• Contact: PC UL94V-0, 0.45mm (0.018”)
Standards
• ANSI/TIA 568C.2
• ISO/IEC 11801
• CENELEC EN50173
• UL 1863
| Part No. | Description |
| 302-201002-4800 | 2U 48-Port Cat 5E Unshielded Dual IDC Patch Panel with Label |
DATA SHEET
