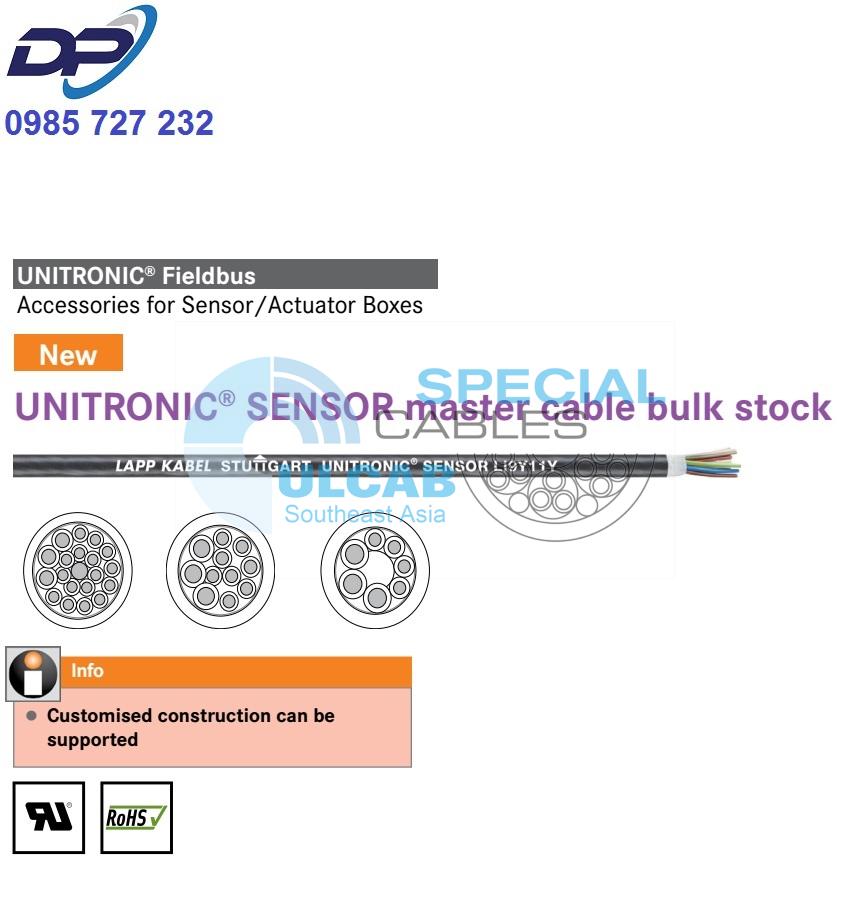

UNITRONIC® SENSOR master cable
Rational wiring for S/A boxes with detachable master cable connection. Outer sheath halogen-free, suitable for drag chains. Customised assembly possible.
Customised assembly possible
Benefits
- Cost-effective and rational wiring for S/A boxes with detachable master cable connection
- Can be used universally for S/A installations
Application range
- Automation technology
- Mechanical engineering
- Plant engineering
- Tool shop
- Automotive industry
Product features
- Cores for power supply:
3×0.75 mm2 and 3×1.0 mm2 - Cores for signal cable:
4×0.34 mm2, 8×0.5 mm2, 16×0.5 mm2 - Suitable for drag chains
- Halogen-free according to VDE 0472-815
- Flame-retardant according to UL 1581 FT-2
Norm references / Approvals
- UL-AWM-Style 21198 (80 °C / 300 V)
Product Make-up
- Fine-wire, bare copper strand
- Single wire diameter:
0.34 mm2 = (43 x 0.10 mm)
0.5 mm2 = (19 x 0.18 mm)
0.75 mm2 = (21 x 0.205 mm)
1.0 mm² = (55 x 0.15 mm) - Core insulation: PP
- Outer sheath: PUR, black
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Conductor stranding
- Strand, fine-wire
Minimum bending radius
- Flexing: 10 x outer diameter
Temperature range
- Fixed installation: -40°C to +80°C
- Flexing: -5°C to +80°C
| Article number | Article designation | Dimensions (mm²) | Outer diameter (mm) | Core/outer sheath material | Colour | Copper index (kg/km) |
| UNITRONIC® SENSOR COMBI | ||||||
| 7038880 | Li9Y11Y | 3 x 0.75 + 4 x 0.34 | 6,6 | PP/PUR | black | 34,5 |
| 7038881 | Li9Y11Y | 3 x 1.0 + 8 x 0.5 | 8,4 | PP/PUR | black | 67,2 |
| 7038882 | Li9Y11Y | 3 x 1.0 + 16 x 0.5 | 9,8 | PP/PUR | black | 105,6 |
